YOKE Swivel Point M42 13.6t 8-271-120 1pc

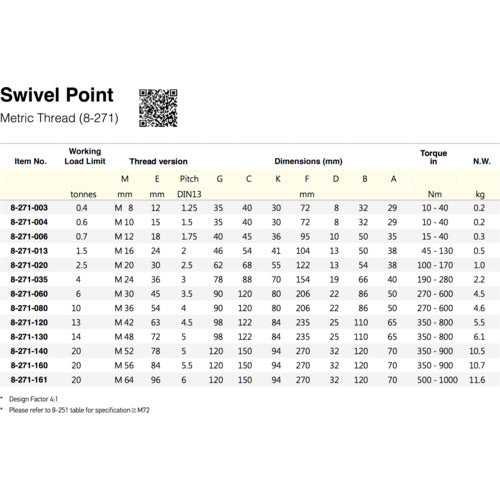

Catalogue number: 8-271-120 Features: ●Built-in ball bearings ensure smooth movement. ●The ring portion can move 180° relative to the mounting surface and rotate 360° in the axial direction. ●Allows horizontal lifting and pulling up operations, which were impossible with JIS-type eye bolts. Applications: ●For moving and inverting large molds. ●For moving and installing large concrete products. ●For moving, transporting and installing heavy components and machinery. Specifications: ●Basic load capacity (t): Vertical suspension: 13.6 / 90° horizontal suspension: 10.4 ●Bolt size: M42 ●Dimension (mm) A: 65 ●Dimension (mm) B: 110 ●Dimension (mm) C: 122 ●Dimension (mm) D: 25 ●Dimension (mm) E: 64 ●Dimension (mm) F: 235 ●Dimension (mm) G: 98 ●Dimension (mm) K: 84 ●Thread diameter: M42 ●Breaking load (kN): 98 ●Complies with EN1677-1, ASME B30.26 ●DGUV GS-OA-15-04 certified ●Tightening torque (N・m): 350-800 ●Complies with REACH regulations Caution: ●Please install the bolts in accordance with the tightening torque indicated.
