YOKE Stainless Steel Eye Point M12 0.96t 8-S291-005 1 pc

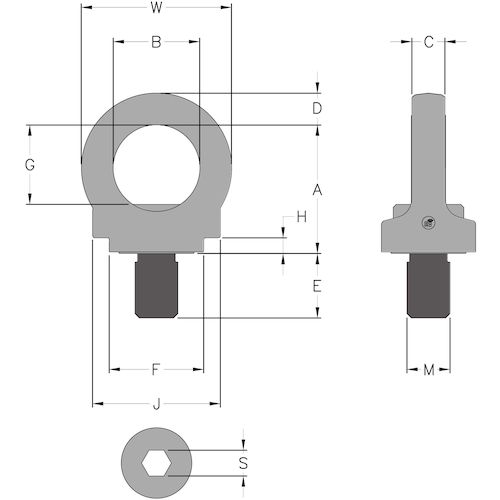

Catalog number: 8-S291-005 Features: ● Made of corrosion-resistant stainless steel, it is ideal for use in the petrochemical industry, food processing, clean rooms, etc. ● Rotates 360° in the axial direction, allowing for horizontal hanging and lifting work that was not possible with JIS type eye bolts. Applications: ● For moving, carrying, and installing equipment and components in the petrochemical industry, food processing, clean rooms, etc. Specifications: ●Basic load capacity (t): Vertical suspension: 0.96 / 90° horizontal suspension: 0.4 ●Bolt size: M12 x 18 ●Dimension (mm) A: 45 ●Dimension (mm) B: 30 ●Dimension (mm) C: 10 ●Dimension (mm) D: 11 ●Dimension (mm) E: 18 ●Dimension (mm) F: 33 ●Dimension (mm) G: 29 ●Dimension (mm) H: 5 ●Dimension (mm) W: 52 ●Dimension (mm) J: 44 ●Dimension (mm) S: 8 ●Complies with EN1677-1, ASME B30.26 ●DGUV GS-OA-15-04 certified ●RFID tag embedded ●Tightening torque: 10N・m ●Complies with REACH regulations Material/Finish: ●Stainless steel Caution: ●Install the bolts in accordance with the tightening torque indicated.
