YOKE Stainless Steel Eye Point M16 1.92t 8-S291-010 1 pc

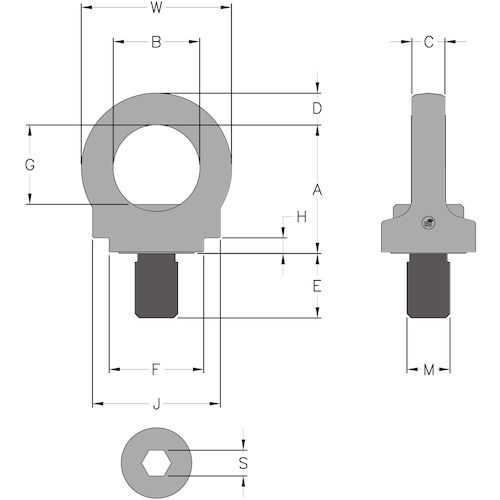

Catalog number: 8-S291-010 Features: ● Made of corrosion-resistant stainless steel, it is ideal for use in the petrochemical industry, food processing, clean rooms, etc. ● Rotates 360° in the axial direction, allowing for horizontal hanging and lifting work that was not possible with JIS type eye bolts. Applications: ● For moving, carrying, and installing equipment and components in the petrochemical industry, food processing, clean rooms, etc. Specifications: ●Basic load capacity (t): Vertical suspension: 1.92 / 90° horizontal suspension: 0.8 ●Bolt size: M16 x 24 ●Dimension (mm) A: 52 ●Dimension (mm) B: 35 ●Dimension (mm) C: 14 ●Dimension (mm) D: 13 ●Dimension (mm) E: 24 ●Dimension (mm) F: 35 ●Dimension (mm) G: 33 ●Dimension (mm) H: 5 ●Dimension (mm) W: 61 ●Dimension (mm) J: 51 ●Dimension (mm) S: 10 ●Complies with EN1677-1, ASME B30.26 ●DGUV GS-OA-15-04 certified ●RFID tag embedded ●Tightening torque: 30N・m ●Complies with REACH regulations Material/Finish: ●Stainless steel Caution: ●Install the bolts in accordance with the tightening torque indicated.
