YOKE Super Point M30X35 9.6t 8-251-080-01 1 piece

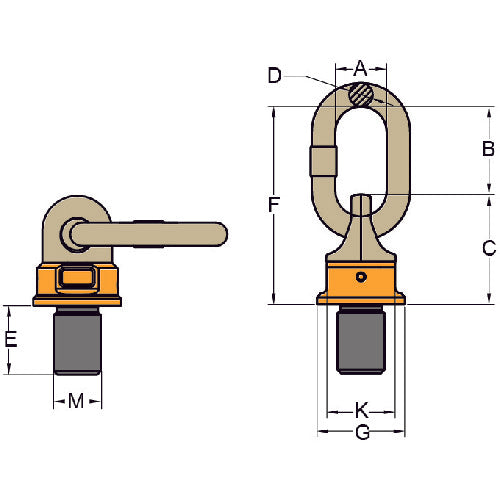

Catalog number: 8-251-080-01 Features: ●Built-in ball bearings ensure smooth movement. ●The ring portion can move 230° relative to the mounting surface and rotate 360° in the axial direction. ●Allows horizontal lifting and pulling up operations, which were impossible with JIS-type eye bolts. Applications: ●For moving and inverting large molds. ●For moving and installing large concrete products. ●For moving, transporting and installing heavy components and machinery. Specifications: ●Basic load capacity (t): Vertical suspension: 9.6 / 90° horizontal suspension: 6.4 ●Bolt size: M30 x 35 ●Dimension (mm) A: 50 ●Dimension (mm) B: 95 ●Dimension (mm) C: 106 ●Dimension (mm) D: 22 ●Dimension (mm) E: 35 ●Dimension (mm) F: 201 ●Dimension (mm) G: 81 ●Dimension (mm) K: 75 ●Dimension (mm) M: M30 ●Complies with EN1677-1, ASME B30.26 ●DGUV GS-OA-15-04 certified ●Tightening torque (N・m): 270-600 ●Complies with REACH regulations Material/Finish: ●Forged alloy steel Caution: ●Install the bolts in accordance with the tightening torque indicated.
