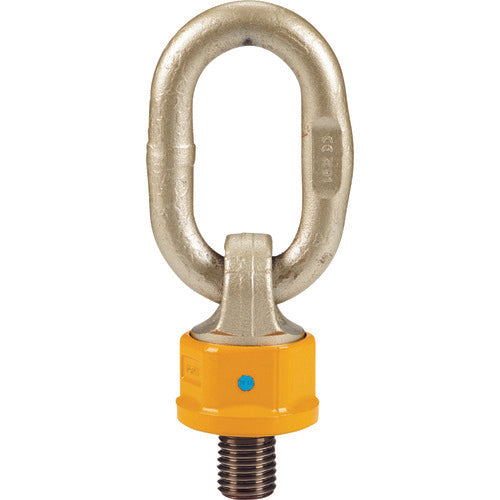

YOKE Super Point M45X60 20.0t 8-251-170-02 1 piece

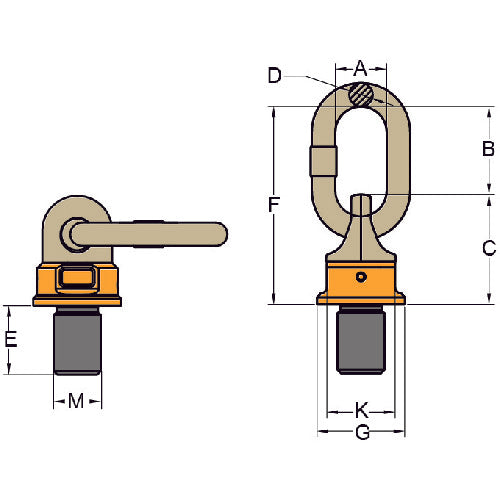

Catalog number: 8-251-170-02 Features: ●Built-in ball bearings ensure smooth movement. ●The ring portion can move 230° relative to the mounting surface and rotate 360° in the axial direction. ●Allows horizontal lifting and pulling up operations, which were impossible with JIS-type eye bolts. Applications: ●For moving and inverting large molds. ●For moving and installing large concrete products. ●For moving, transporting and installing heavy components and machinery. Specifications: ●Basic load capacity (t): Vertical suspension: 20 / 90° horizontal suspension: 13.6 ●Bolt size: M45 x 60 ●Dimension (mm) A: 70 ●Dimension (mm) B: 129 ●Dimension (mm) C: 127 ●Dimension (mm) D: 32 ●Dimension (mm) E: 60 ●Dimension (mm) F: 256 ●Dimension (mm) G: 104 ●Dimension (mm) K: 95 ●Dimension (mm) M: M45 ●Complies with EN1677-1, ASME B30.26 ●DGUV GS-OA-15-04 certified ●Tightening torque (N・m): 350-800 ●Complies with REACH regulations Material/Finish: ●Forged alloy steel Caution: ●Install the bolts in accordance with the tightening torque indicated.
