YOKE Super Point for Welding 12.8t 8-0575-160 1 piece

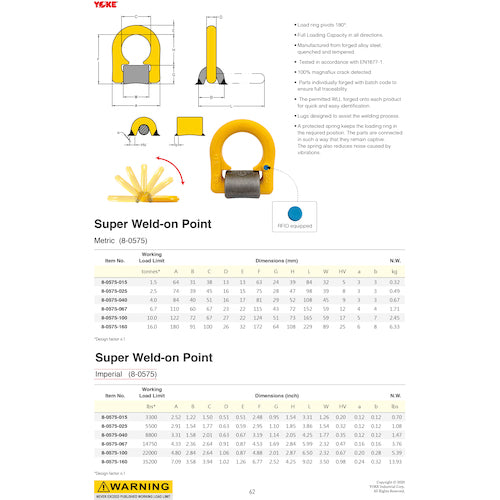

Catalog number: 8-0575-160 Features: ●The ring can be rotated 180 degrees and stopped at any angle. ●Can be used for horizontal hanging and lifting. ●RFID is embedded, allowing easy product identification using a dedicated app. ●The welding block is forged from a material with excellent weldability. ●All products undergo magnetic flaw detection inspection before shipping. Applications: ●For moving, carrying, and installing heavy objects such as molds and machine tools. Specifications: ●Basic load capacity (t): 12.8 ●Dimension (mm) A: 180 ●Dimension (mm) B: 92 ●Dimension (mm) C: 100 ●Dimension (mm) D: 26 ●Dimension (mm) E: 32 ●Dimension (mm) F: 172 ●Dimension (mm) G: 66 ●Dimension (mm) H: 106 ●Dimension (mm) L: 228 ●Dimension (mm) W: 89 ●Dimension (mm) b: 8 ●Dimension (mm) HV: 25 ●Dimension (mm) a: 6 ●Complies with EN1677-1 ●Complies with REACH regulations Materials/Finish: ●Body: Forged alloy steel, Welded parts: S355J2+N
