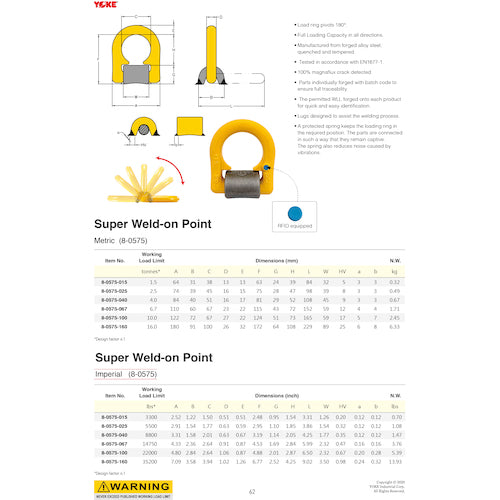

YOKE Welding Super Point 3.2t 8-0575-040 1 piece

Catalog number: 8-0575-040 Features: ●The ring can be rotated 180 degrees and stopped at any angle. ●Can be used for horizontal hanging and lifting. ●RFID is embedded, allowing easy product identification using a dedicated app. ●The welding block is forged from a material with excellent weldability. ●All products undergo magnetic flaw detection inspection before shipping. Applications: ●For moving, carrying, and installing heavy objects such as molds and machine tools. Specifications: ●Basic load capacity (t): 3.2 ●Dimension (mm) A: 84 ●Dimension (mm) B: 40 ●Dimension (mm) C: 51 ●Dimension (mm) D: 16 ●Dimension (mm) E: 17 ●Dimension (mm) F: 81 ●Dimension (mm) G: 29 ●Dimension (mm) H: 52 ●Dimension (mm) L: 108 ●Dimension (mm) W: 45 ●Dimension (mm) b: 3 ●Dimension (mm) HV: 9 ●Dimension (mm) a: 3 ●Complies with EN1677-1 ●Complies with REACH regulations Materials/Finish: ●Body: Forged alloy steel, Welded parts: S355J2+N
