YOKE Welding Super Point 5.4t 8-0575-067 1 piece

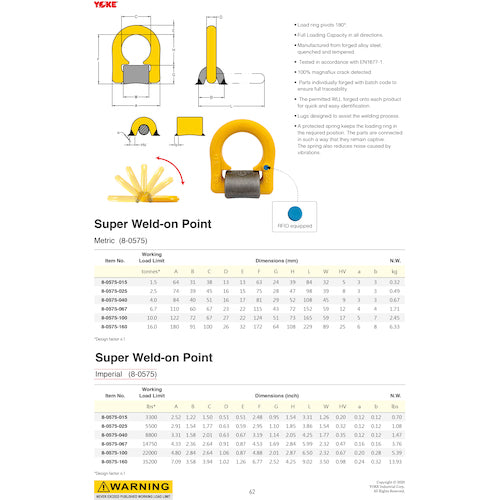

Catalog number: 8-0575-067 Features: ●The ring can be rotated 180 degrees and stopped at any angle. ●Can be used for horizontal hanging and lifting work. ●RFID is embedded, allowing easy product identification using a dedicated app. ●The welding block is forged from a material with excellent weldability. ●All products undergo magnetic flaw detection inspection before shipping. Applications: ●For moving, carrying, and installing heavy objects such as molds and machine tools. Specifications: ●Basic load capacity (t): 5.4 ●Dimension (mm) A: 110 ●Dimension (mm) B: 60 ●Dimension (mm) C: 67 ●Dimension (mm) D: 23 ●Dimension (mm) E: 22 ●Dimension (mm) F: 115 ●Dimension (mm) G: 43 ●Dimension (mm) H: 72 ●Dimension (mm) L: 152 ●Dimension (mm) W: 59 ●Dimension (mm) b: 4 ●Dimension (mm) HV: 12 ●Dimension (mm) a: 4 ●Complies with EN1677-1 ●Complies with REACH regulations Materials/Finish: ●Body: Forged alloy steel, Welded parts: S355J2+N
