YOKE Welding Ring 12.8t 8-082-16 1 pc

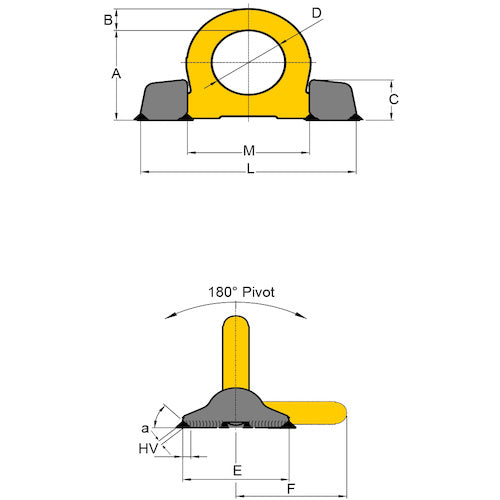

Catalog number: 8-082-16 Features: ●Ring can be rotated 180 degrees. ●Side lifting and lifting operations are possible. ●Welding blocks are forged from materials with excellent weldability. ●All products undergo magnetic flaw detection inspection before shipping. Applications: ●For moving, carrying, and installing heavy objects such as molds and machine tools. Specifications: ●Basic load capacity (t): 12.8 ●Dimension (mm) A: 127 ●Dimension (mm) B: 30 ●Dimension (mm) C: 57 ●Dimension (mm) D: 90 ●Dimension (mm) E: 130 ●Dimension (mm) F: 130 ●Dimension (mm) L: 263 ●Dimension (mm) M: 149 ●Dimension (mm) HV: 8 ●Dimension (mm) a: 4 ●Complies with EN1677-1 ●DGUV GS-OA-15-04 certified ●Complies with REACH regulations Materials/Finish: ●Body: Forged alloy steel, Welded parts: S355J2+N
