YOKE社

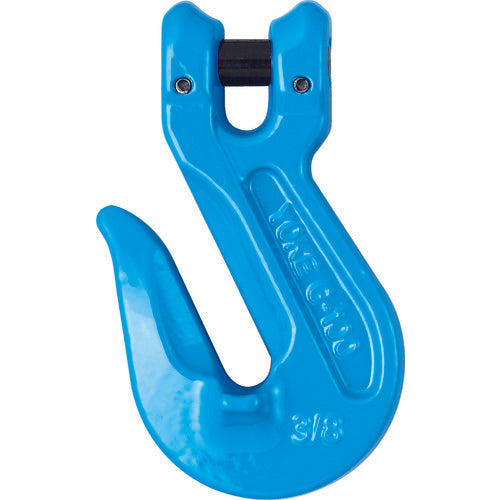

YOKE G-100 Grab Hook (Pin Type) 15.2T X-042-22 1 pc
YOKE G-100 Grab Hook (Pin Type) 15.2T X-042-22 1 pc
Regular price
¥39,666
Regular price
Sale price
¥39,666
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

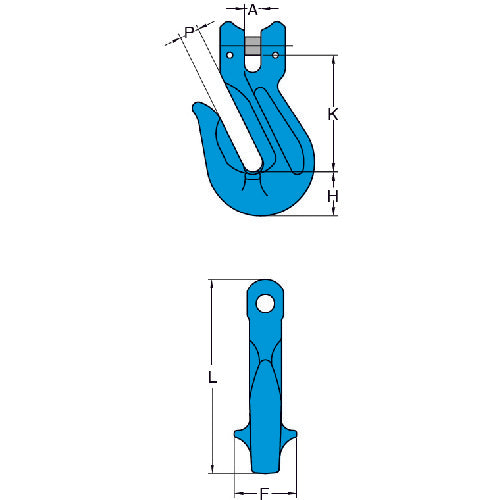

Catalogue number: X-042-22 Features: ●Pin type grab hook. ●The chain sling length can be freely adjusted with the dedicated chain hook. Applications: ●For lifting loads in civil engineering and construction work. Specifications: ●Basic load capacity (t): 15.2 ●Applicable chain wire diameter (mm): 22 ●Type: Pin type ●Dimensions (mm) A: 24 ●Dimensions (mm) F: 70 ●Dimensions (mm) H: 56 ●Dimensions (mm) K: 139 ●Dimensions (mm) L: 247 ●Dimensions (mm) P: 26 ●Chain wire diameter (mm): 22 ●Complies with REACH regulations Material/Finish: ●Alloy steel Caution: ●Safety factor: 4:1
