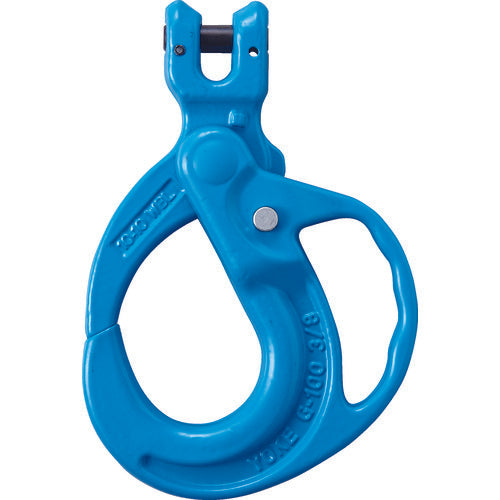

YOKE G-100 Grip specification clevis locking hook (pin type) 16T X-951-22 1 pc

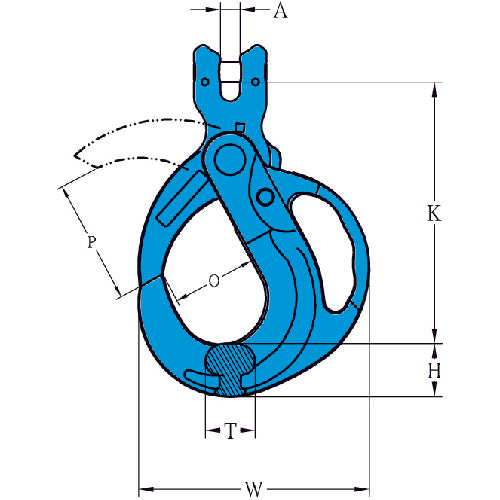

Catalogue number: X-951-22 Features: ● Handheld pin-type locking hook. ● Increases safety and work efficiency at the work site. Applications: ● For slinging and lifting loads in civil engineering and construction work. Specifications: ● Basic load capacity (t): 16 ● Suitable chain wire diameter (mm): 22 ● Type: Pin type ● Dimensions (mm) A: 24.2 ● Dimensions (mm) H: 59 ● Dimensions (mm) K: 300 ● Dimensions (mm) P: 151 ● Dimensions (mm) T: 56 ● Chain wire diameter (mm): 22 ● REACH regulation compliant Material/Finish: ● Alloy steel Caution: ● Safety factor: 4:1
