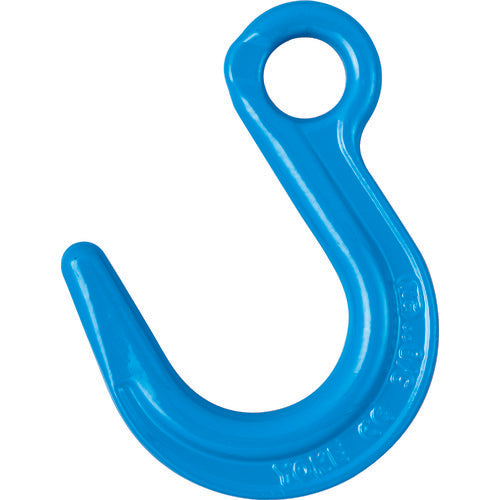

YOKE G-100 Foundry Hook (Eye Type) 3.2T X-047-10 1 pc

YOKE G-100 Foundry Hook (Eye Type) 3.2T X-047-10 1 pc

JAN：4713037059205 　
Cargo handling equipment Hook Lifting clamps, slings, and load tie-downs YOKE Loading fittings
¥5,369
¥5,369
Sale Sold out
Shipping calculated at checkout.

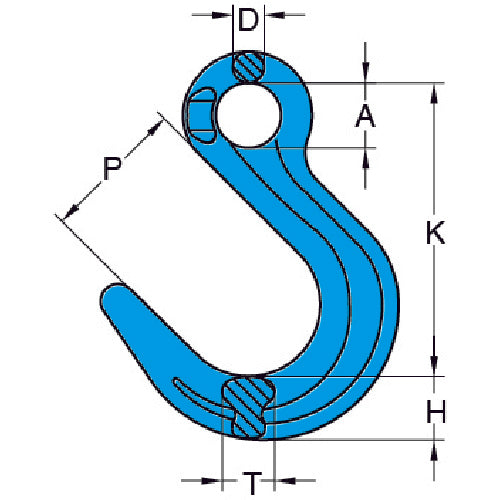

Catalog number: X-047-10 Features: ●The mouth is wide, making it easy to hang thick objects. Applications: ●For slinging and lifting loads in civil engineering and construction work. Specifications: ●Basic load capacity (t): 3.2 ●Applicable chain wire diameter (mm): 10 ●Type: Eye type ●Dimensions (mm) A: 32 ●Dimensions (mm) D: 15 ●Dimensions (mm) H: 32 ●Dimensions (mm) K: 149 ●Dimensions (mm) P: 74 ●Dimensions (mm) T: 23 ●Chain wire diameter (mm): 10 ●Complies with REACH regulations Material/Finish: ●Alloy steel Caution: ●Safety factor: 4:1
View full details
