ＹＯＫＥ社

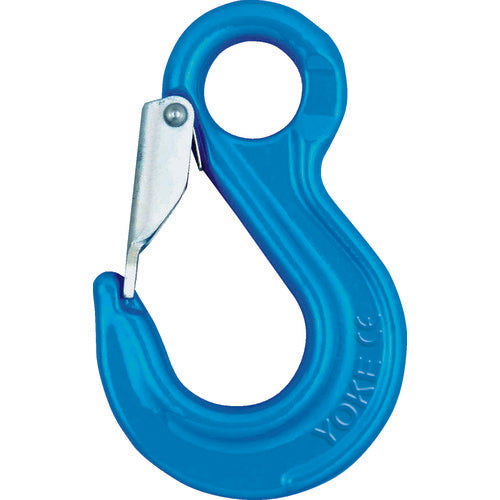

YOKE G-100 Latch Sling Hook (Eye Type) 15.2T X-044/S-22 1 pc
YOKE G-100 Latch Sling Hook (Eye Type) 15.2T X-044/S-22 1 pc
Regular price
¥58,127
Regular price
Sale price
¥58,127
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

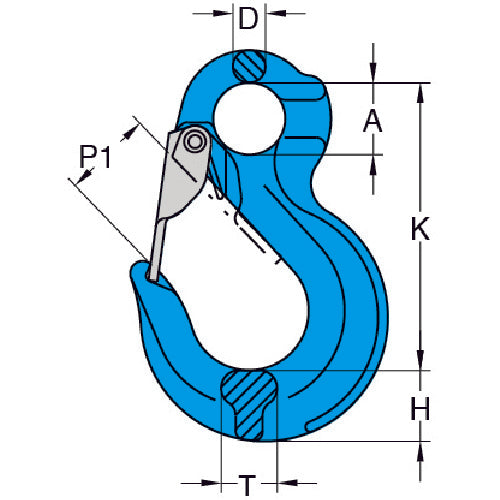

Catalogue number: X-044/S-22 Features: ●Eye-type sling hook with latch. ●Can be connected directly to chains. Applications: ●For slinging and lifting loads in civil engineering and construction work. Specifications: ●Basic load capacity (t): 15.2 ●Applicable chain wire diameter (mm): 22 ●Type: Eye type ●Dimensions (mm) A: 51 ●Dimensions (mm) D: 31 ●Dimensions (mm) H: 63 ●Dimensions (mm) K: 245 ●Dimensions (mm) P: 76 ●Dimensions (mm) T: 52 ●Chain wire diameter (mm): 22 ●Complies with REACH regulations Material/Finish: ●Alloy steel Caution: ●Safety factor: 4:1
View full details
