YOSHITAKE Disc type steam trap Nominal size: 15A, 1/2B TSD-42-15A 1 unit

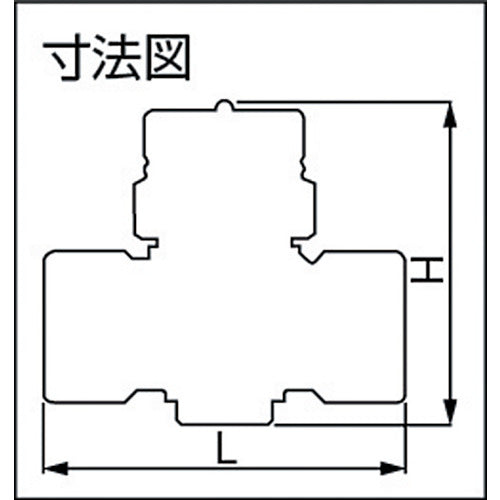

Catalogue number: TSD-42-15A Features: ●High-pressure disk trap with stainless steel body. ●Compact and lightweight, and the piping can be installed in any direction (horizontal or vertical). ●Strainer built-in type. Applications: ●Applicable fluid: steam drain. ●For steam transport pipes and piping tracing lines. Specifications: ●Nominal diameter A: 15 ●Nominal diameter B: 1/2 ●L (mm): 78 ●H (mm): 76 ●Connection method: JIS Rc ●Applicable pressure: 0.035 to 4.2 MPa ●Back pressure tolerance: 50% or less of inlet pressure ●Maximum operating temperature: 425°C Materials/Finish: ●Body: Stainless steel (SCS2A) ●Disc and valve seat: Stainless steel
