YOSHITAKE Disc type steam trap Nominal size: 20A, 3/4B TSD-42-20A 1 unit

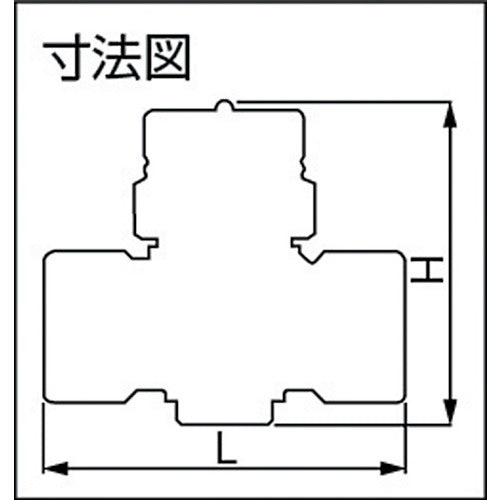

Catalogue number: TSD-42-20A Features: ●High-pressure disk trap with stainless steel body. ●Compact and lightweight, and the piping can be installed in any direction (horizontal or vertical). ●Strainer built-in type. Applications: ●Applicable fluid: steam drain. ●For steam transport pipes and piping tracing lines. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●L (mm): 85 ●H (mm): 79 ●Connection method: JIS Rc ●Applicable pressure: 0.035 to 4.2 MPa ●Back pressure tolerance: 50% or less of inlet pressure ●Maximum operating temperature: 425°C Materials/Finish: ●Body: Stainless steel (SCS2A) ●Disc and valve seat: Stainless steel
