YOSHITAKE Disc type steam trap 15A TD-10NA-15A 1 unit

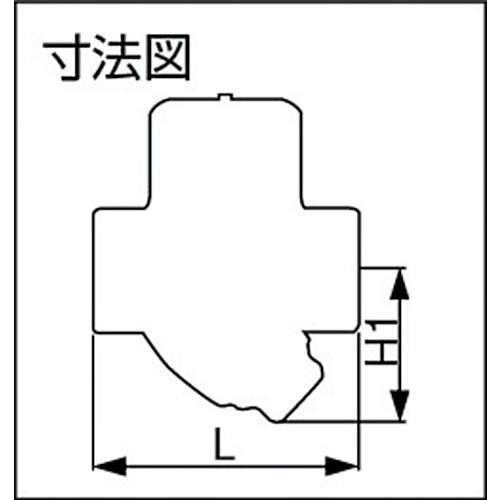

Catalog number: TD-10NA-15A Features: ●Disc type trap. ●Compact and lightweight, and the piping installation direction (horizontal or vertical) is optional. ●Strainer built-in type. Applications: ●Applicable fluid: steam drain. ●For steam transport pipes and piping tracing lines. Specifications: ●Nominal diameter A: 15 ●Nominal diameter B: 1/2 ●L (mm): 90 ●H1 (mm): 49 ●Connection method: JIS Rc ●Applicable pressure: 0.035 to 2.0 MPa ●Back pressure tolerance: 50% or less of inlet pressure ●Maximum operating temperature: 220°C Materials/Finish: ●Body: Spheroidal graphite cast iron (FCD450) ●Disc and valve seat: Stainless steel
