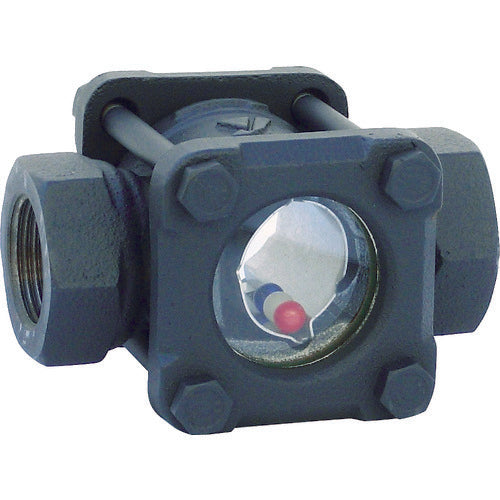

YOSHITAKE Ball-type sight glass 15A SB-1S-15A 1 unit

Catalogue number: SB-1S-15A Features: ● Sight glass that allows you to check the flow condition by the movement of the ball. ● The installation direction of the piping (horizontal or vertical) is optional. (However, the glass surface should be horizontal.) Applications: ● Applicable fluid: cold and hot water. Specifications: ● Nominal diameter A: 15 ● Nominal diameter B: 1/2 ● Total length (mm): 80 ● Connection method: JIS Rc ● Maximum operating pressure: 1.0MPa ● Maximum operating temperature: 85℃ Materials/Finish: ● Body: Spheroidal graphite cast iron (FCD450) ● Glass: Reinforced glass ● Ball: Synthetic resin
