YOSHITAKE House Water Supply Pressure Reducing Valve 20A GD-15-20A 1 unit

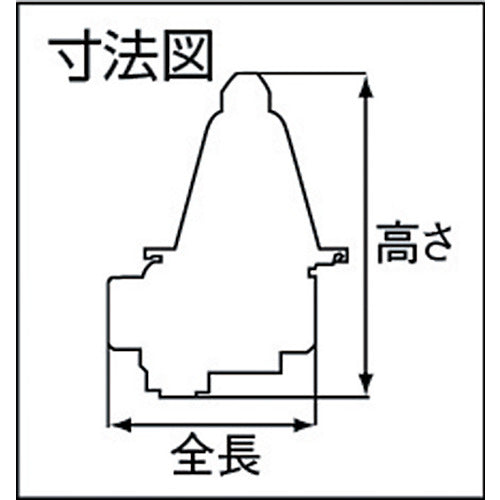

Catalogue number: GD-15-20A Features: ●A pressure reducing valve for water supply that eliminates noise from the pressure reducing valve itself, making it safe to use even when supplying water late at night. ●Complies with Water Supply Act standards. ●With a sealed structure, fluid will not leak out even if the diaphragm is damaged. ●By adopting a balanced structure, the secondary pressure is always kept constant without being affected by the primary pressure. Applications: ●Applicable fluid: Tap water. ●Pressure reducing valve for individual water supply. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●Total length (mm): 90 ●Height (mm): 146 ●Compatible fluid: Water ●Connection method: JIS Rc ●Primary pressure: 0.1 to 1.0 MPa ●Secondary pressure: 0.05 to 0.25 MPa (standard setting 0.2 MPa) ●Operating temperature: 5 to 60°C ●Minimum differential pressure before and after the valve (Mpa): 0.03 ●Maximum pressure reduction ratio: 10:1 ●Minimum adjustable flow rate: 0.5 L/min ●Fluid temperature: 5 to 60°C ●Rated flow rate: 30 L/min (50 L/min if differential pressure is 0.1 MPa or more) Material/Finish: ●Valve box: Bronze (NPb treatment) ●Valve body: NBR ●Diaphragm: NBR (with cloth)
