YOSHITAKE Water Pressure Reducing Valve Mizuri 20A GD-24GS-20A 1 unit

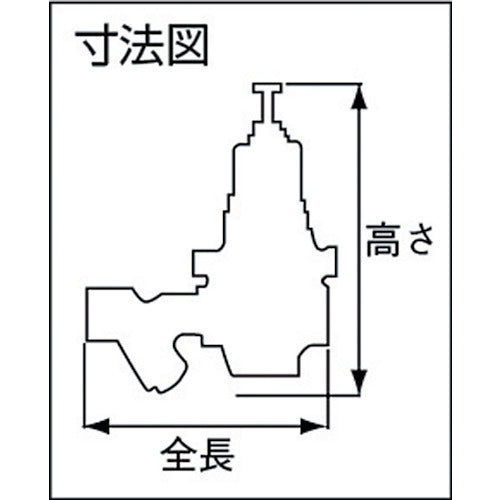

Catalog number: GD-24GS-20A Features: ● Pressure reducing valve for hot and cold water, set with pressure reducing valve, strainer, and pressure gauge. ● Sealed structure, even if the diaphragm is damaged, the fluid will not leak out. Applications: ● Applicable fluid: cold and hot water. ● Factory equipment and residential equipment. Specifications: ● Nominal diameter A: 20 ● Nominal diameter B: 3/4 ● Total length (mm): 169 ● Height (mm): 216 ● Compatible fluid: water ● Connection method: JIS Rc ● Primary pressure: 0.2 to 1.6 MPa ● Secondary pressure: 0.05 to 0.55 MPa ● Minimum differential pressure before and after the valve: 0.05 MPa ● Maximum pressure reduction ratio: 10:1 ● Fluid temperature: 5 to 80°C (However, continuous use at temperatures above 70°C should be avoided.) Material/Finish: ● Valve box: Bronze ● Valve body: Urethane rubber ● Valve seat: Stainless steel ● Diaphragm: NBR
