YOSHITAKE Water Pressure Reducing Valve 20A GD-56-80-20A 1 unit

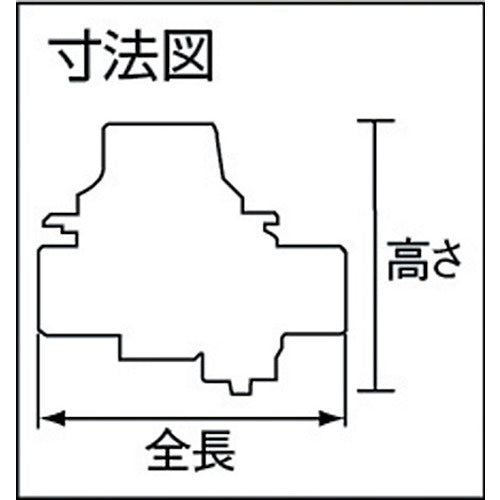

Catalog number: GD-56-80-20A Features: ● Pressure reducing valve for hot water heat exchangers (electric hot water heaters, etc.). ● JIS certified product. ● Uses a pressure balance mechanism to keep the secondary pressure constant without being affected by the primary pressure. ● The strainer, check valve, and strainer cap are integrated, making maintenance and inspection easy. ● The piping can be installed in any direction (horizontal or vertical). ● The valve body and diaphragm are resistant to chlorine water. Applications: ● Applicable fluid: cold and hot water. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●Total length (mm): 115 ●Height (mm): 105.5 ●Compatible fluid: Water ●Connection method: JIS Rc ●Primary pressure: 100 to 750 kPa ●Set pressure: 80 ± 6 kPa ●Maximum operating temperature: 60°C Material/Finish: ●Valve body: Bronze (NPb treatment) ●Valve body/check valve: Heat-resistant/water-resistant synthetic rubber ●Diaphragm: Heat-resistant/water-resistant synthetic rubber
