YOSHITAKE Steam Pressure Reducing Valve Secondary Pressure (B) Nominal Size: 20A, 3/4B GD-30-B-20A 1 unit

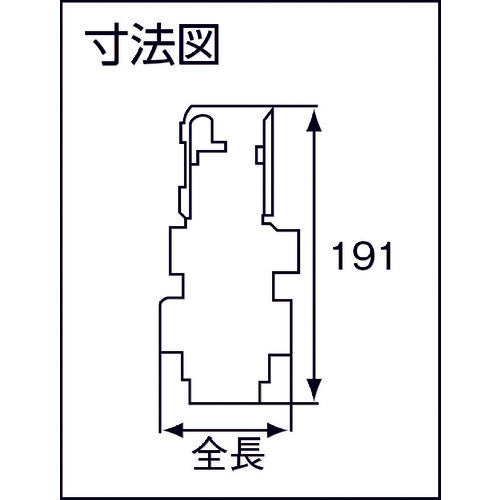

Catalogue number: GD-30-B-20A Features: ● Compact and lightweight direct acting pressure reducing valve. ● Pressure adjustment can be performed by operating the handle, no tools required. ● Built-in screen (60 mesh). Applications: ● Applicable fluid: steam. ● Air conditioning equipment, cleaning equipment, etc. Specifications: ● Nominal diameter A: 20 ● Nominal diameter B: 3/4 ● Overall length (mm): 85 ● Height (mm): 191 ● Suitable fluid: steam ● Connection method: JIS Rc ● Primary pressure: 1.7MPa or less ● Secondary pressure: 0.05 to 0.4MPa ● Maximum pressure reduction ratio: 10:1 ● Minimum differential pressure: 0.05MPa ● Maximum temperature: 210℃ Materials/Finish: ● Body: bronze ● Valve body and valve seat: stainless steel ● Bellows: phosphor bronze
