YOSHITAKE See-through sight glass Nominal size: 20A, 3/4B SL-1S-20A 1 unit

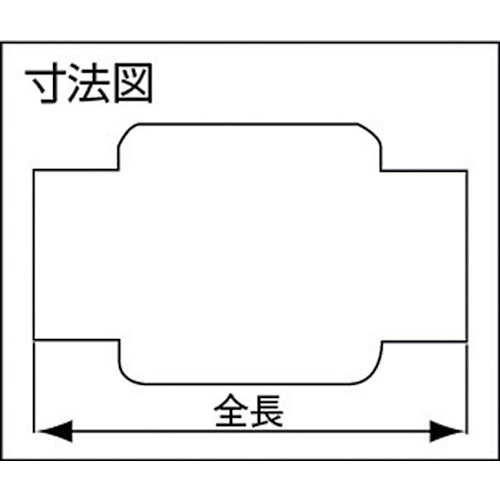

Catalog number: SL-1S-20A Features: ● Sight glass that allows you to check the mixture state and color of two-liquid fluids. ● The installation direction of the piping (horizontal or vertical) is optional. Applications: ● Applicable fluids: cold and hot water, oil, and other non-hazardous fluids. Specifications: ● Nominal diameter A: 20 ● Nominal diameter B: 3/4 ● Total length (mm): 90 ● Connection method: JIS Rc ● Maximum operating pressure: 1.0 MPa ● Maximum operating temperature: 150°C ● Thermal shock resistance temperature: 100°C Materials/Finish: ● Body: Spheroidal graphite cast iron (FCD450) ● Glass: Tempered glass
