YOSHITAKE Y-shaped strainer (stainless steel cast) 80 mesh Nominal size: 15A, 1/2B SY-17-80M-15A 1 unit

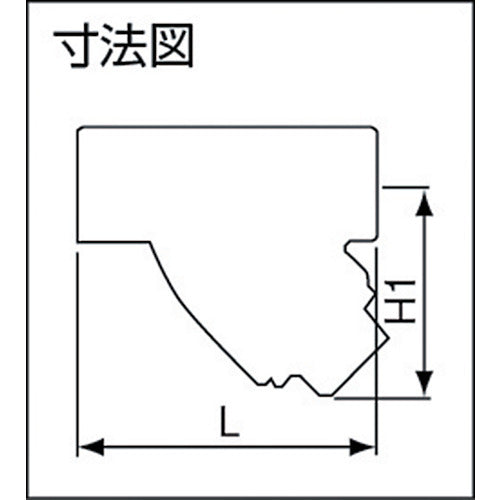

Catalogue number: SY-17-80M-15A Features: ●High flow rate marine type stainless steel Y-shaped strainer. Applications: ●Applicable fluids: steam, air, cold and hot water, oil, and other non-hazardous fluids. ●Oil supply piping for food and chemical industries. Specifications: ●Nominal diameter A: 15 ●Nominal diameter B: 1/2 ●L (mm): 85 ●H1 (mm): 55 ●Mesh: 80 ●Connection method: JIS Rc ●Maximum operating pressure: 2.0 MPa ●Maximum temperature: 100°C ●Standard 80 mesh Materials/Finish: ●Body: Stainless steel cast steel ●Screen: Stainless steel
