YOSHITAKE Y-shaped strainer (stainless steel cast) 80 mesh Nominal size: 25A, 1B SY-17-80M-25A 1 unit

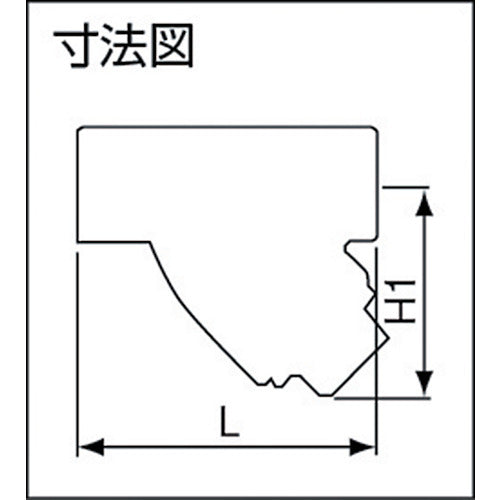

Catalogue number: SY-17-80M-25A Features: ●High flow rate marine type stainless steel Y-shaped strainer. Applications: ●Applicable fluids: steam, air, cold and hot water, oil, and other non-hazardous fluids. ●Oil supply piping for food and chemical industries. Specifications: ●Nominal diameter A: 25 ●Nominal diameter B: 1 ●L (mm): 115 ●H1 (mm): 83 ●Mesh: 80 ●Connection method: JIS Rc ●Maximum operating pressure: 2.0 MPa ●Maximum temperature: 100°C ●Standard 80 mesh Materials/Finish: ●Body: Stainless steel cast steel ●Screen: Stainless steel
