YOSHITAKE Y-shaped strainer (spheroidal graphite cast iron) 80 mesh Nominal size: 15A, 1/2B SY-40-80M-15A 1 unit
YOSHITAKE Y-shaped strainer (spheroidal graphite cast iron) 80 mesh Nominal size: 15A, 1/2B SY-40-80M-15A 1 unit
Regular price
¥7,819
Regular price
Sale price
¥7,819
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

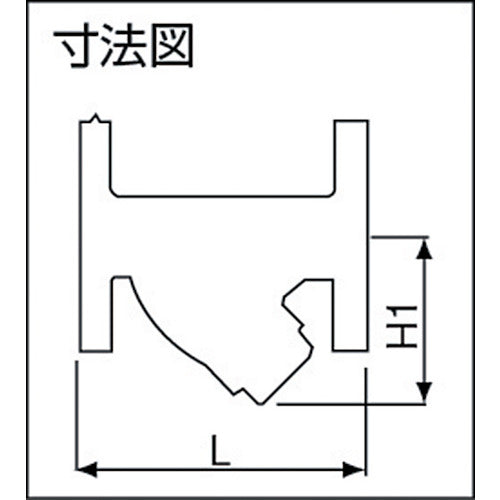

Catalog number: SY-40-80M-15A Features: ●High flow rate marine type Y-strainer. Applications: ●Applicable fluids: steam, air, cold and hot water, oil, and other non-hazardous fluids. Specifications: ●Nominal diameter A: 15 ●Nominal diameter B: 1/2 ●L (mm): 130 ●H1 (mm): 61 ●Mesh: 80 ●Connection method: JIS 10KFF flange ●Maximum operating pressure: 1.0MPa ●Maximum temperature: 220℃ ●Standard 80 mesh Materials/Finish: ●Body: Spheroidal graphite cast iron (FCD450) ●Screen: Stainless steel
