（株）ヨシタケ

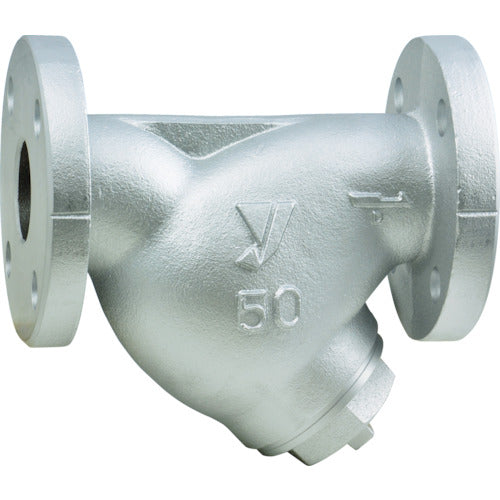

YOSHITAKE Y-shaped strainer (spheroidal graphite cast iron) 80 mesh Nominal size: 20A, 3/4B SY-40-80M-20A 1 unit
YOSHITAKE Y-shaped strainer (spheroidal graphite cast iron) 80 mesh Nominal size: 20A, 3/4B SY-40-80M-20A 1 unit
Regular price
¥9,368
Regular price
Sale price
¥9,368
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

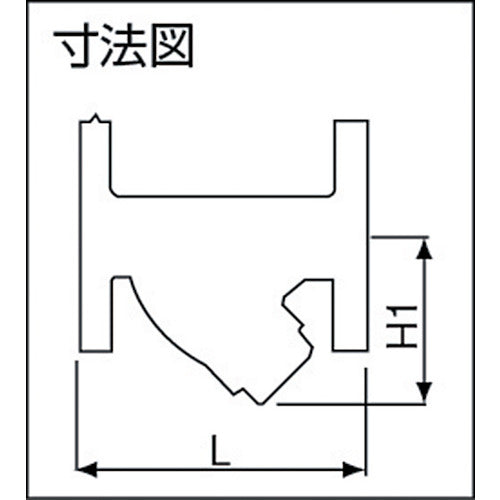

Catalog number: SY-40-80M-20A Features: ●High flow rate marine type Y-strainer. Applications: ●Applicable fluids: steam, air, cold and hot water, oil, and other non-hazardous fluids. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●L (mm): 140 ●H1 (mm): 75 ●Mesh: 80 ●Connection method: JIS 10KFF flange ●Maximum operating pressure: 1.0MPa ●Maximum temperature: 220℃ ●Standard 80 mesh Materials/Finish: ●Body: Spheroidal graphite cast iron (FCD450) ●Screen: Stainless steel
View full details
