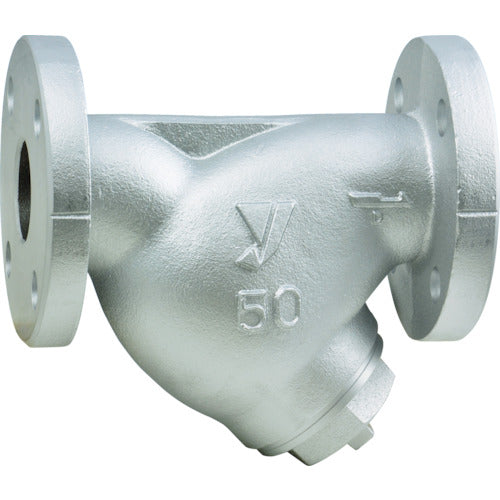

YOSHITAKE Y-shaped strainer (spheroidal graphite cast iron) 80 mesh Nominal size: 25A, 1B SY-40-80M-25A 1 unit

YOSHITAKE Y-shaped strainer (spheroidal graphite cast iron) 80 mesh Nominal size: 25A, 1B SY-40-80M-25A 1 unit

JAN：4589946534252 　
Construction and lighting supplies Pipework Equipment Strainer valve Yoshitake Valve
¥13,016
¥13,016
Sale Sold out
Shipping calculated at checkout.

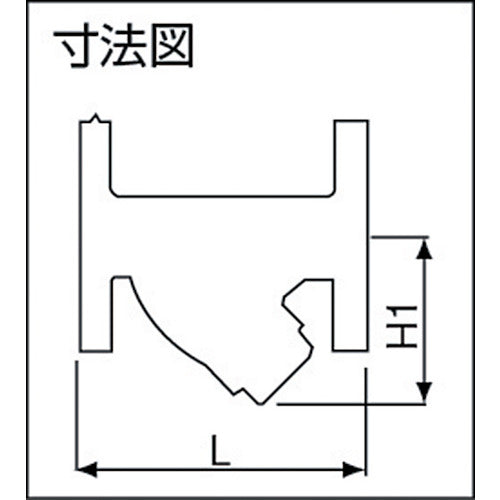

Catalog number: SY-40-80M-25A Features: ●High flow rate marine type Y-strainer. Applications: ●Applicable fluids: steam, air, cold and hot water, oil, and other non-hazardous fluids. Specifications: ●Nominal diameter A: 25 ●Nominal diameter B: 1 ●L (mm): 160 ●H1 (mm): 88 ●Mesh: 80 ●Connection method: JIS 10KFF flange ●Maximum operating pressure: 1.0MPa ●Maximum temperature: 220℃ ●Standard 80 mesh Materials/Finish: ●Body: Spheroidal graphite cast iron (FCD450) ●Screen: Stainless steel
