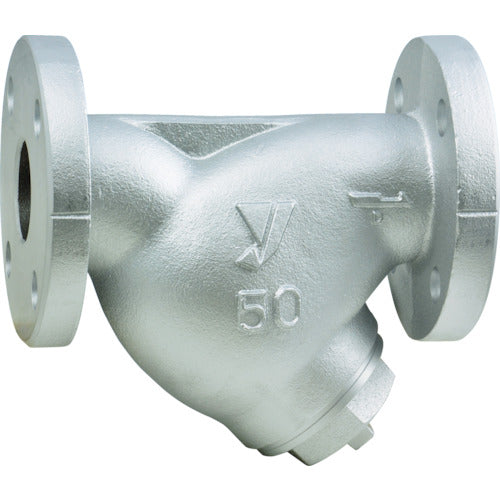

YOSHITAKE Y-shaped strainer (spheroidal graphite cast iron) 80 mesh Nominal size: 32A, 11/4B SY-40-80M-32A 1 unit

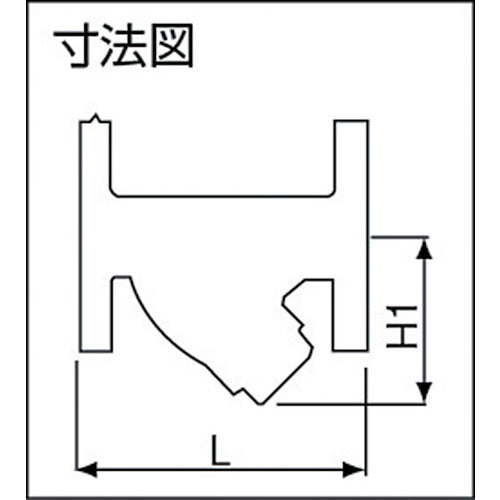

Catalog number: SY-40-80M-32A Features: ●High flow rate marine type Y-strainer. Applications: ●Applicable fluids: steam, air, cold and hot water, oil, and other non-hazardous fluids. Specifications: ●Nominal diameter A: 32 ●Nominal diameter B: 1 1/4 ●L (mm): 175 ●H1 (mm): 104 ●Mesh: 80 ●Connection method: JIS 10KFF flange ●Maximum operating pressure: 1.0MPa ●Maximum temperature: 220℃ ●Standard 80 mesh Material/Finish: ●Body: Spheroidal graphite cast iron (FCD450) ●Screen: Stainless steel
