（株）ヨシタケ

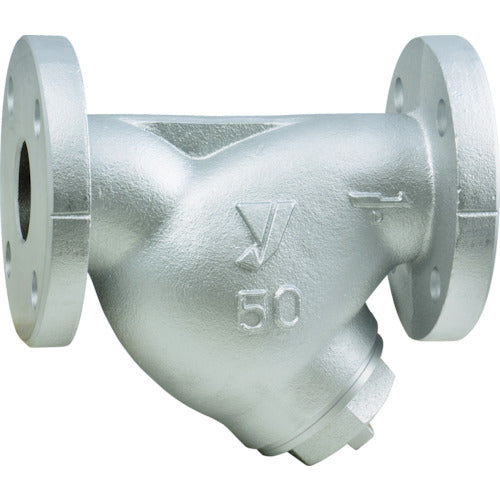

YOSHITAKE Y-shaped strainer (spheroidal graphite cast iron) 80 mesh Nominal size: 50A, 2B SY-40-80M-50A 1 unit
YOSHITAKE Y-shaped strainer (spheroidal graphite cast iron) 80 mesh Nominal size: 50A, 2B SY-40-80M-50A 1 unit
Regular price
¥20,929
Regular price
Sale price
¥20,929
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

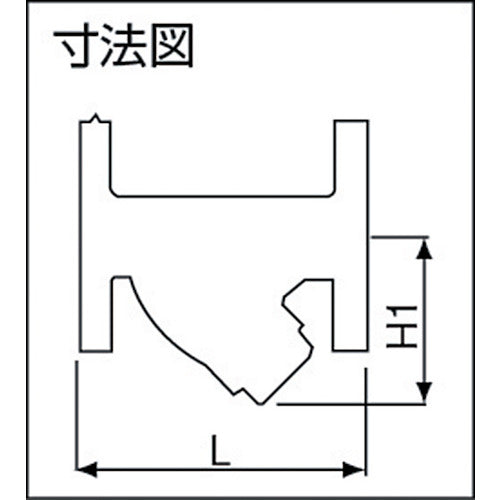

Catalog number: SY-40-80M-50A Features: ●High flow rate marine type Y-strainer. Applications: ●Applicable fluids: steam, air, cold and hot water, oil, and other non-hazardous fluids. Specifications: ●Nominal diameter A: 50 ●Nominal diameter B: 2 ●L (mm): 225 ●H1 (mm): 140 ●Mesh: 80 ●Connection method: JIS 10KFF flange ●Maximum operating pressure: 1.0MPa ●Maximum temperature: 220℃ ●Standard 80 mesh Materials/Finish: ●Body: Spheroidal graphite cast iron (FCD450) ●Screen: Stainless steel
