YOSHITAKE Y-shaped strainer (80mm) 15A SY-5-80M-15A 1 piece

YOSHITAKE Y-shaped strainer (80mm) 15A SY-5-80M-15A 1 piece

JAN：4589946537031 　
Construction and lighting supplies Pipework Equipment Strainer valve Yoshitake Valve
¥3,089
¥3,089
Sale Sold out
Shipping calculated at checkout.

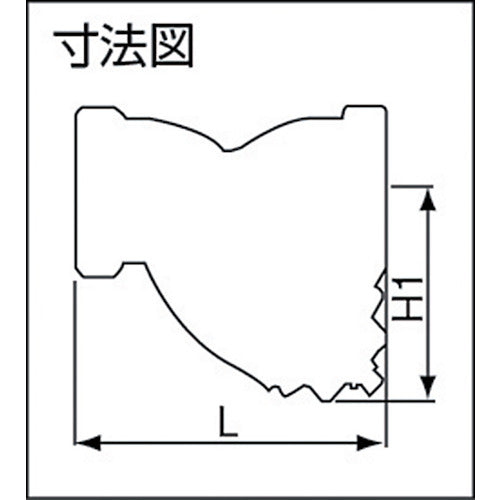

Catalogue number: SY-5-80M-15A Features: ●High flow rate marine type Y-strainer. ●Compact and lightweight. Applications: ●Applicable fluids: steam, air, cold and hot water, oil, and other non-hazardous fluids. Specifications: ●Nominal diameter A: 15 ●Nominal diameter B: 1/2 ●Total length (mm): 75 ●Height (mm): 55 ●Mesh: 80 ●Connection method: JIS Rc ●Maximum pressure: 2.0MPa ●Maximum temperature: 220℃ ●Standard 80 mesh Materials/Finish: ●Body: Spheroidal graphite cast iron (FCD450) ●Screen: Stainless steel
