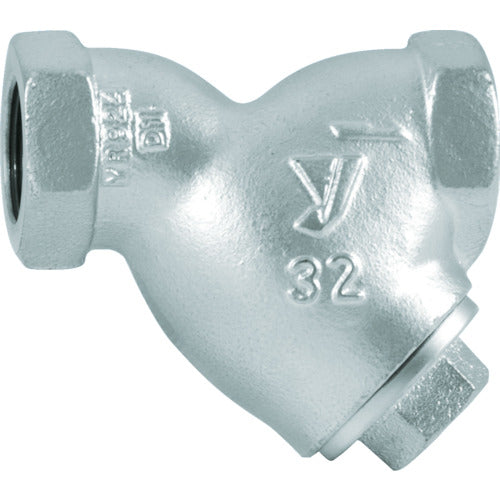

YOSHITAKE Y-type strainer (80mm) 40A SY-5-80M-40A 1 unit

YOSHITAKE Y-type strainer (80mm) 40A SY-5-80M-40A 1 unit

JAN：4589946537680 　
Construction and lighting supplies Pipework Equipment Strainer valve Yoshitake Valve
¥8,870
¥8,870
Sale Sold out
Shipping calculated at checkout.

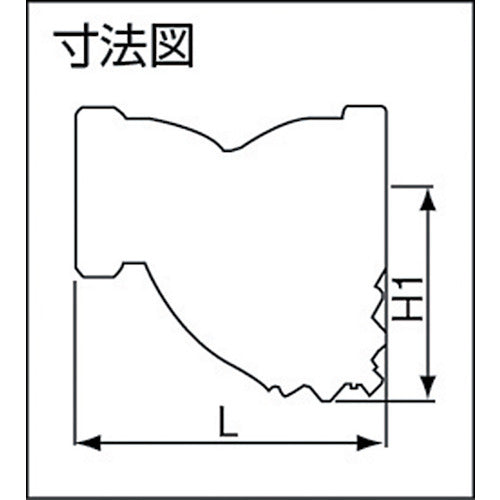

Catalogue number: SY-5-80M-40A Features: ●High flow rate marine type Y-strainer. ●Compact and lightweight. Applications: ●Applicable fluids: steam, air, cold and hot water, oil, and other non-hazardous fluids. Specifications: ●Nominal diameter A: 40 ●Nominal diameter B: 1 1/2 ●Total length (mm): 145 ●Height (mm): 105 ●Mesh: 80 ●Connection method: JIS Rc ●Maximum operating pressure: 2.0MPa ●Maximum temperature (℃): 220℃ ●Standard 80 mesh Material/Finish: ●Body: Spheroidal graphite cast iron (FCD450) ●Screen: Stainless steel
