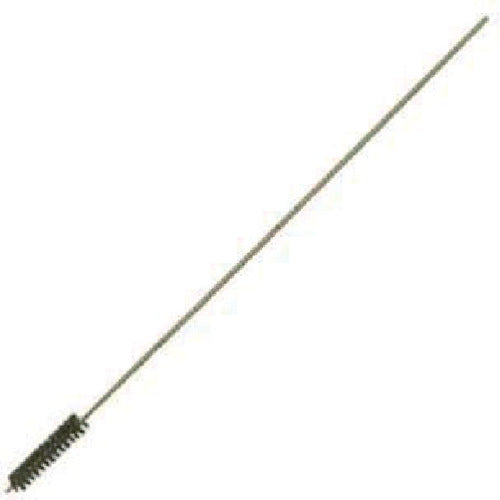

YUKO Flex Horn #AO240 BC Type Aluminum Oxide Shaft Diameter 1.4mm AO240 BC-4.5 1 Piece

Catalog number: BC-4.5 Features: ● A structure with balls made of sintered artificial abrasive grains attached to the fiber resin feet protruding from the shaft. ● The feet are made of nylon resin and are highly elastic, so they can be used to polish burrs and uneven surfaces on the inside of workpieces. Applications: ● SC (silicon carbide) Workpieces made of relatively hard materials (cast iron, carbon steel, hardened iron, etc.) ● AO (alumina oxide) Workpieces made of relatively soft materials (aluminum, stainless steel, copper, etc.) <Coarse grain size> #60, 120, 180, mainly for deburring <Fine grain size> #240, 320, 600, mainly for polishing <LA rubygate alumina> #1000 equivalent (for mirror finishing) (#20, #40, #80, #400, #800 are available as special orders) ● Deburring, polishing, finishing, and chamfering the inner cylindrical parts of various equipment and parts. ● Honing finish for internal combustion engines, hydraulic cylinders, and various other cylinders. ● Rust removal, cleaning, and polishing of the inner surface of tubes and pipes. Specifications: ● Shaft diameter (mm): 1.4 ● Suitable inner diameter (mm): 4.0-4.5 ● Total length (mm): 152 ● Abrasive grain: Aluminum oxide ● Abrasive grain length (mm): 19 ● Rotation speed varies depending on the workpiece, but is used between approximately 300 and 1200 rpm ● Working time varies depending on the material of the workpiece and the purpose of use, but as a guideline, it is 10 to 20 seconds, and the reciprocating motion is approximately one reciprocating motion every 2 seconds ● Grinding fluid is a water solution (solub type) or spindle oil ● Tools used: Electric drill, drill press, machining, etc. Material/Finish: ● Abrasive grain: Silicon carbide ● Shaft: Zinc-plated wire ● Brush part: Nylon Note: ● Standards are available for sizes from 216 mm to 914 mm. We also accept non-standard orders, so please contact us.
