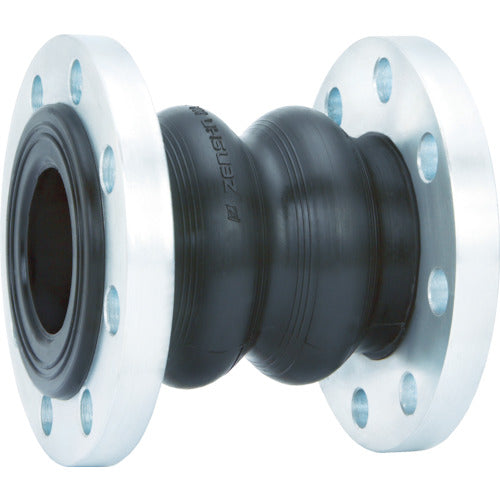

ZENSHIN Rubber Anti-Vibration Joint (Flange Type) Nominal Diameter 100A (4 inches) ZRJ-T-100 1 piece

Catalogue number: ZRJ-T-100 Features: ●Absorbs vibrations with the flexibility of rubber. ●Adopts a solid ring, so there is no need to worry about the flange coming off. ●By using recycled materials, CO2 emissions have been reduced by approximately 34% compared to conventional methods. Applications: ●For absorbing vibrations in pump piping. Specifications: ●Nominal diameter A: 100 ●Nominal diameter B: 4 ●Total length (mm): 225 ●Compatible fluids: cold and hot water ●Maximum operating pressure: 1MPa (at room temperature) ●Operating temperature range: -20 to 60°C Materials/Finish: ●Flexible section: Synthetic rubber (EPDM) ●Flange section: Steel (SS400)
