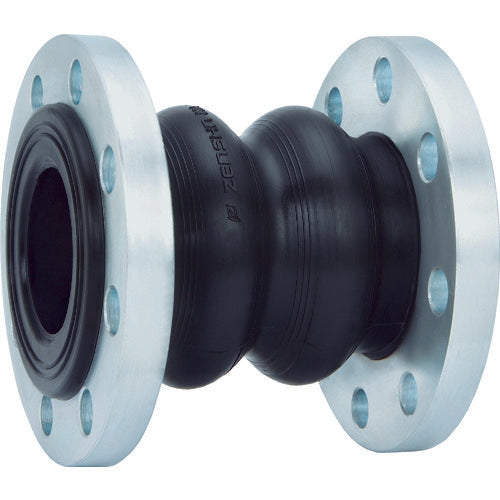

ZENSHIN Rubber Anti-Vibration Joint (Flange Type) Nominal Diameter 25A (1 inch) ZRJ-T-25 1 piece

Catalogue number: ZRJ-T-25 Features: ●Absorbs vibrations due to the flexibility of rubber. ●The use of solid rings eliminates the risk of flanges coming off. ●By using recycled materials, CO2 emissions have been reduced by approximately 34% compared to conventional methods. Applications: ●For absorbing vibrations in pump piping. Specifications: ●Nominal diameter A: 25 ●Nominal diameter B: 1 ●Total length (mm): 120 ●Compatible fluids: cold and hot water ●Maximum operating pressure: 1MPa (at room temperature) ●Operating temperature range: -20 to 60°C Materials/Finish: ●Flexible section: Synthetic rubber (EPDM) ●Flange section: Steel (SS400)
