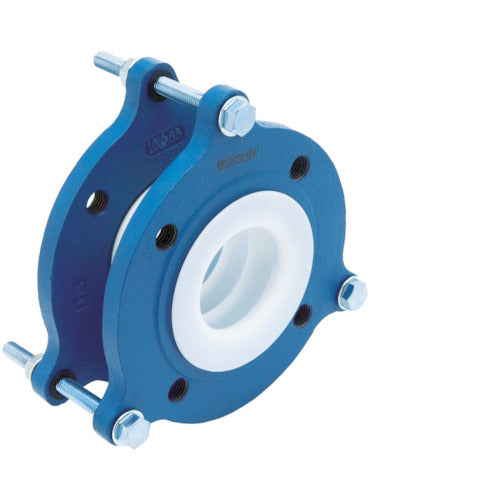

ZENSHIN Fluororesin Anti-Vibration Joint (Flange Type) ZTF-5000-80 1 Piece

Catalog number: ZTF-5000-80 Features: ●Excellent chemical resistance, corrosion resistance, and weather resistance, as well as high vibration resistance. ●By using recycled materials, CO2 emissions have been reduced by approximately 34% compared to conventional products. Applications: ●For absorbing vibration, expansion and contraction, and eccentricity of piping. Specifications: ●Nominal diameter A: 80 ●Nominal diameter B: 3 ●Total length (mm): 85 ●Maximum operating pressure (MPa): 1MPa (at room temperature) ●Operating temperature range (℃): -20 to 130 ●Compatible fluids: cold and hot water, chemical solutions, food, pure water Materials/Finish: ●Flexible part: Fluorine resin (PTFE) ●Flange part: Cast iron (FCD450)
