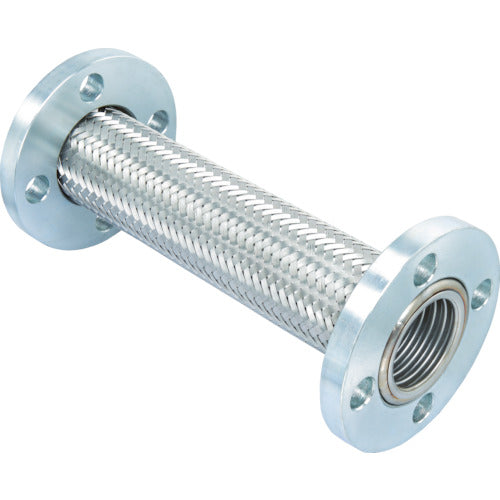

ZENSHIN Flexible Metal Hose (Non-welded, Flange Type) Nominal Diameter 20A (3/4 inch) Z-2000NW-20-300 1 pc

Catalog number: Z-2000NW-20-300 Features: ●No welding is used to assemble the bellows, making it highly durable. ●Stainless steel liquid contact parts, loose flange type on both sides. ●By using recycled materials, CO2 emissions have been reduced by approximately 34% compared to conventional models. Applications: ●For piping centering, displacement absorption, and earthquake resistance. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●Total length (mm): 300 ●Maximum operating pressure (MPa): 1MPa (at room temperature) ●Operating temperature range (℃): -40 to 300 ●Compatible fluids: cold and hot water, steam (limited to non-corrosive fluids) Material/Finish: ●Flexible part: Stainless steel (SUS304) ●Flange part: Steel (SS400)
