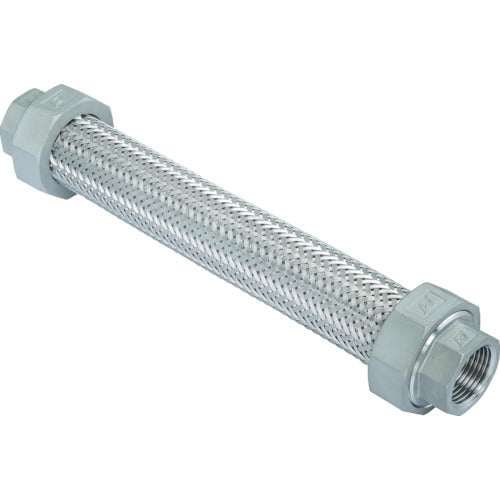

ZENSHIN Flexible Metal Hose (Non-welded, Union Type, Stainless Steel Type) Nominal Diameter 20A (3/4 inch) Z-10000NW-20-500 1 pc

Catalog number: Z-10000NW-20-500 Features: ●No welding is used to assemble the bellows, so it has excellent durability. Applications: ●For piping alignment, displacement absorption, and earthquake resistance. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●Total length (mm): 500 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): -40 to 100 ●Compatible fluids: cold and hot water, oils, gases (limited to non-corrosive fluids) Material/Finish: ●Flexible part: Stainless steel (SUS304) ●Union part: Stainless steel (SCS13)
