Nakabayashi Co., Ltd., Reebex Division, Beam Sensor Chime Set

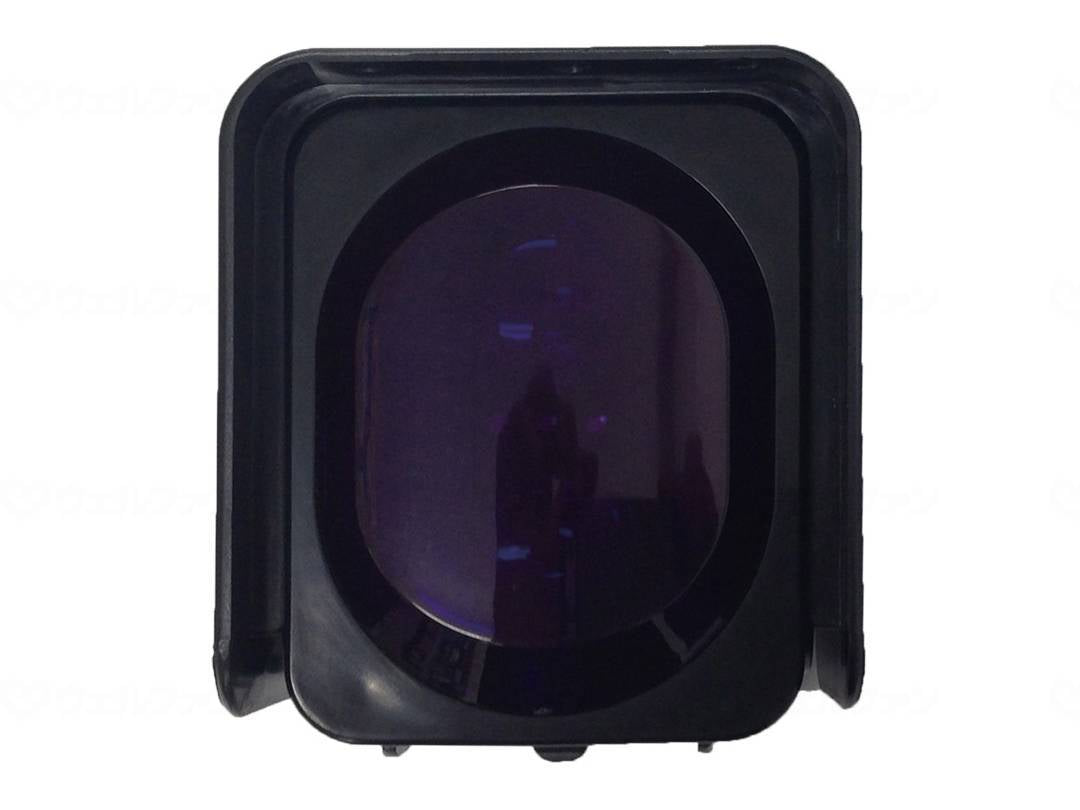

Manufacturer Part Number: "X890" TAIS: "01223-000009" Size and Weight Height 230mm x Width 205mm x Depth 60mm Features Invisible light beam monitors people, animals, and cars! Scare people off at the scene with 14 different sounds! You can adjust the volume and turn off the sound! Scare off intruders! Alerts you to a distant room with light and chimes! No wiring required Easy installation Outdoor visibility distance 100m Transmitters and receivers can be added Beam sensor also emits warning sound Monitoring distance up to 8m Surveillance with invisible infrared beams X800 Receiving Chime: Indoor X90 Beam Sensor Transmitter: Weatherproof and can be installed outdoors comment For intruder detection For bed exit detection Vehicle entry and exit warning Radio wave range: up to 100m (outdoors) 1. When the invisible infrared beam is interrupted, a sound is emitted to alert people in a distant room. 2. The monitoring range is up to about 8m. The radio wave can reach a distance of 100m outdoors. 3. Sirens, dog barks, chimes and melodies can be played at the surveillance location. Main Specifications ■Beam sensor transmitter (X90) Power supply: AC adapter (X0505) included Transmitted radio wave: 315MHz band specific low power digital ID radio wave Radio wave reach: 100m (outdoor line of sight) Sensor output: Infrared beam (built-in receiver) Sensor detection range: up to 8m (when using a dedicated reflector) Usage location: Indoors, outdoors (waterproof) Chime sound: Can be output from the main unit (volume 50-70dB/1m, with OFF) Operating temperature range: -10℃ to +45℃ External dimensions: 77 (W) x 87 (H) x 57 (D) mm Weight: 162g (including cover and plate) ■ Receiver (X800) Power supply: 3 AA alkaline batteries or AC adapter Receiving radio waves: 315MHz band specific low power, digital ID radio waves (set to the same ID number as X90) When receiving: Blue LED flashes + chime sound Low battery indication: Red LED lights up, battery life 3 months Place of use: Indoor use only Chime sounds: 16 types (selected by transmitter) Volume: 50-70dB/1m External dimensions: 63 (W) x 96 (H) x 33 (D) mm Weight: 157g (including batteries) Standard details Wireless Chime X800 Additional Chime Receiver, Beam Sensor Transmitter X90, Reflector, AC Adapter for Wireless Chime X0505 Receiver, 1 each
