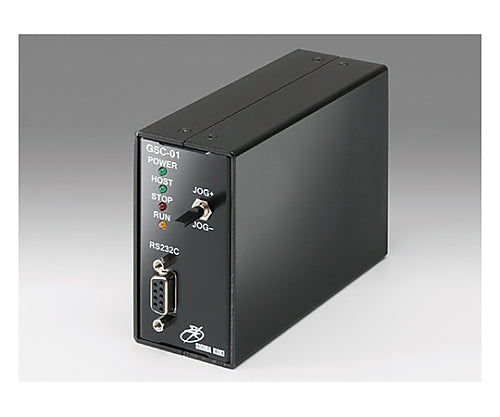

1-axis stage controller GSC-01 1 piece

This is a single-axis stage controller with a built-in 5-phase stepping motor driver. External control is possible via the RS232C interface, and jog drive is possible via the jog switch on the front panel and external I/O. *Power supply specifications are DC +24V 2A. *You will need to purchase PAT-001-POW1 (AC adapter) or prepare it yourself. [<1-axis stage controller> Common specifications] Main functions Controller function: Yes Main functions Number of control axes: 1 axis Main functions Built-in program control: - Main function Feedback control: - Main functions Circular interpolation control: - Main functions Linear interpolation control: - Main Functions Driver Function: Standard Main functions Microstep (maximum number of divisions): 2 divisions Main Features Drive current: 0.3-0.8A/phase General specifications Power supply voltage: DC24V 1.3A General specifications Power consumption: 32VA General Specifications Operating temperature: 5 to 40°C General specifications Storage temperature: -20 to 60°C General specifications Ambient humidity: 20 to 80% RH General specifications External dimensions (W x H x D): 47 x 90 x 125 mm General specifications Weight: 0.4kg Interface GP-IB: - Interface RS232C: Yes Interface USB: - Interface Ethernet: - Performance specifications Coordinate display range: - Performance specifications Maximum set movement: 16777215 Performance specifications Maximum drive speed: 20,000pps Performance specifications Minimum drive speed: 100pps Performance specifications Acceleration/deceleration time: 0 to 1,000 ms I/O specifications Origin sensor: - I/O specifications Proximity sensor: - I/O specifications CW(+) limit: Yes I/O specifications CCW (-) limit: ○ I/O specifications General-purpose input: 4 points I/O specifications General-purpose output: 4 points I/O specifications Control input: 3 points I/O specifications Control output: - I/O specifications Trigger output: - Control command Mechanical origin return: Yes Control command Logical origin setting: Yes Control command Relative position drive: Yes Control command Absolute position drive: Yes Control command Jog operation: Yes Control command Position specification: - Control command Circular interpolation control: - Control command Linear interpolation control: - Control command Drive: Yes Control command: Deceleration stop: Yes Control command Emergency stop: Yes Control command Speed ​​setting: ○ Control command Motor free/hold: Yes Control command port input: Yes Control command port output: Yes Control command Origin offset setting: Yes Control command Jog operation speed setting: Yes [Individual specifications] Product name: 1-axis stage controller CE Compliant
