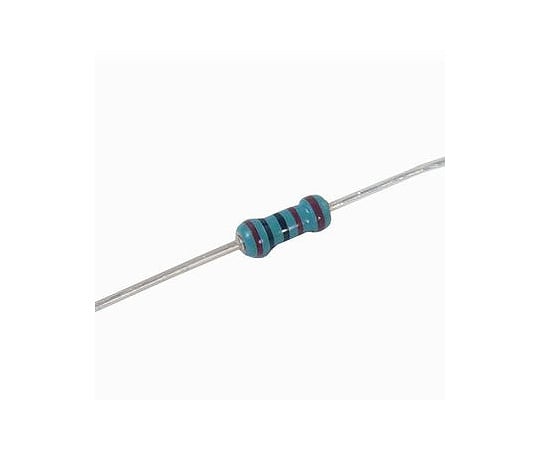

1/4W Metal Film High Meg Resistor 100MΩ Brown Black Black Blue Brown RMG25FX100M 1 Piece

This is an ultra-high resistance used in minute current circuits. It is a special product called Hi-Megg. Contamination on the exterior can cause current leakage, so do not grab the body with bare hands. If it becomes contaminated, clean it with alcohol before using. Takuman Electronics' Hi-Megg resistors are special resistors with a lineup of high resistances of 10MΩ or more. The appearance is the same as metal film resistors, but a special resistive element called metal glaze is used. High resistance resistors are affected by leakage current caused by surface contamination such as sebum from the hands, so care should be taken to handle them cleanly. Resistance value: 100MΩ Color code: brown black black blue brown Resistance tolerance: ±1% Rated power: 0.25W Temperature coefficient: 100 Maximum operating voltage: 500V Withstand voltage: - Maximum overload voltage: 700V Resistance value dimensions: 6.3±0.5mm
