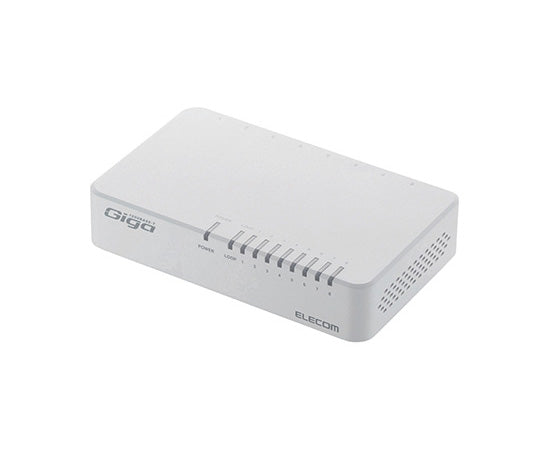

1000BASE-T compatible switching hub EHC-G08PA2-W 1 unit

This is an 8-port hub with an external power supply and plastic casing that supports 1000BASE-T, with a power-saving function that cuts off the power supply to ports when not communicating, allowing for power savings of up to approximately 82%*. *Measurements were made by transferring data from the load device to a hub and measuring and comparing the power consumption after one minute when all ports were communicating and not communicating. It is equipped with a loop detection function that notifies you of the occurrence of network loops that may affect network operation. The LED lamp will flash to notify you and encourage you to quickly resolve the network problem. The fanless design makes it ideal for use in places where quiet operation is required, such as bedrooms and offices. In addition, by reducing the number of moving parts, high reliability and durability are achieved. Since no electrolytic capacitors are used on the main board, a long life design has been achieved. The AC adapter has been designed with anti-tracking measures to prevent tracking caused by dust, even if the adapter is left in place for a long period of time. The compact design means you can place it anywhere, and it can be installed horizontally or hung on a wall using the wall-mounting hole on the back of the unit. Connection method: 1000BASE-T, 100BASE-TX, 10BASE-T Network type: IEEE802.3ab/IEEE802.3u/IEEE802.3 Switching method: Store and forward Buffer memory: 192Kbytes (dynamically allocated to each port) Flow control: IEEE802.3x (full duplex), back pressure (half duplex) Switch fabric: 16.0Gbps Maximum packet forwarding capacity: 12.0Mpps Filtering speed: 1,488,000 packets/sec (1000Mbps), 148,800 packets/sec (100Mbps), 14,880 packets/sec (10Mbps) Number of registered MAC addresses: 4,096 (total for all ports) Number of ports: 8 ports AutoMDI/MDI-X: Supported Auto-negotiation: Supported (1000/100/10Mbps) Connector type: RJ-45 x 8 Suitable Cable 10BASE-T: UTP category 3 or higher, 100BASE-TX: UTP category 5 or higher, 1000BASE-T: UTP category 5e or higher Non-blocking: Supported Jumbo frames: Supported (9Kbytes) Loop detection function: Loop detection MTBF: 779,000 hours EAP Transparency: Supported BPDU transparency function: Supported Input voltage: AC100-240V±10% 50/60Hz Power consumption (rated): max. 5.4W Heat output: Maximum approx. 19.5 kJ/h Power saving function: Easy Energy Saving E (IEEE 802.3az) compatible Energy efficiency: 0.6W/Gbps Maximum effective transmission speed: 8.0Gbps External dimensions (width x depth x height): approx. 140.0 x 86.5 x 34.0 mm (main unit only) Weight: Approx. 190g Housing material: Plastic Color: White Operating environment conditions: Temperature: 0°C to 40°C Humidity: 10% to 90% (no condensation) Storage environment conditions: Temperature: -40°C to 70°C, Humidity: 5% to 90% (no condensation) Installation direction: horizontal installation, wall mounting Wall mounting hole: Yes Warranty period: 1 year Compliance with laws and regulations: Compliant with EU RoHS Directive Compliance standard: VCCI Class B Accessories: 1 dedicated AC adapter (approx. 1.5m), 1 safety instruction sheet *The rubber feet are attached to the product body at the time of shipment.
