Up and down in millimeters
JIS Class 1 (15cm to 1m)
With weights and measures conversion table on the back

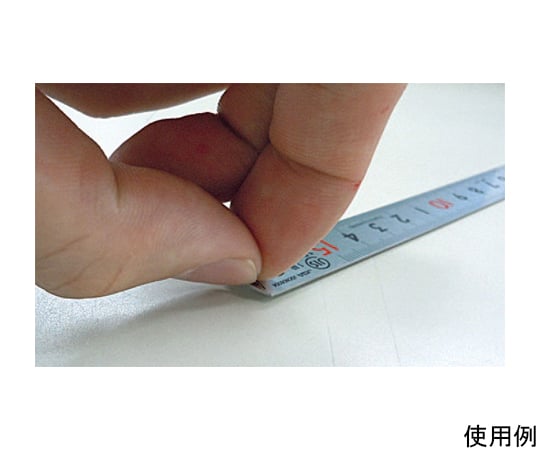

The tip of the scale is bent to make it easier to grip.
The silver finish reduces surface reflections, making the markings easier to read.
Etched and plated scale ensures performance even under harsh conditions.
Uses large, easy-to-read numbers. Manufacturer: Shinwa Measurement
Model number: 13131
Scale x width x thickness: 150 x 15 x 0.5 mm
Scale pitch: Upper and lower stages 1mm pitch
Length tolerance: ±0.15mm *Based on a temperature of 20°C
Body size: 175 x 15 x 0.5 mm
Material: Stainless steel (SUS420J2)
Weight: 10g
Uses: For length measurement, line drawing, marking, etc. For measuring and inspecting industrial products.
