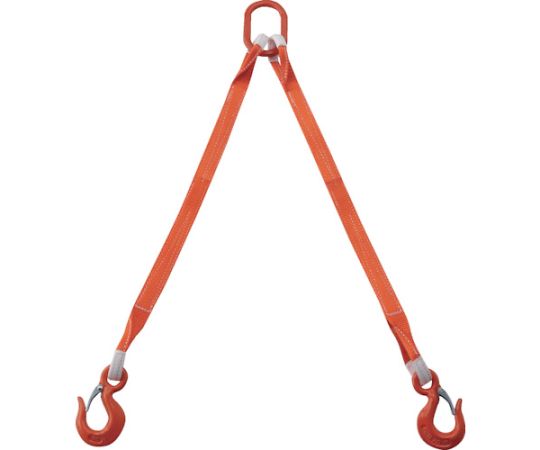

2-piece belt sling set, 35mm width x 1m, load 1.72t at hoisting angle 60° (maximum load 2t) G35-2P10, 1 set

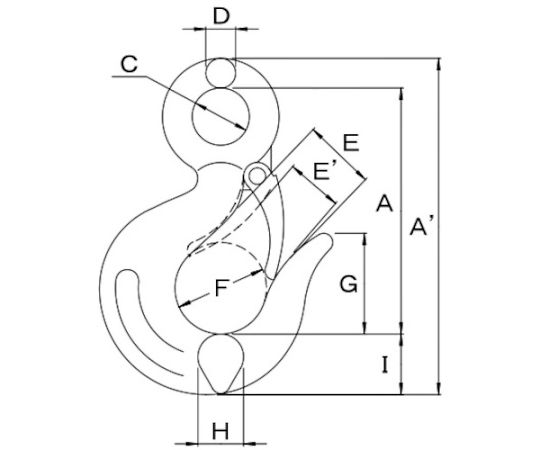

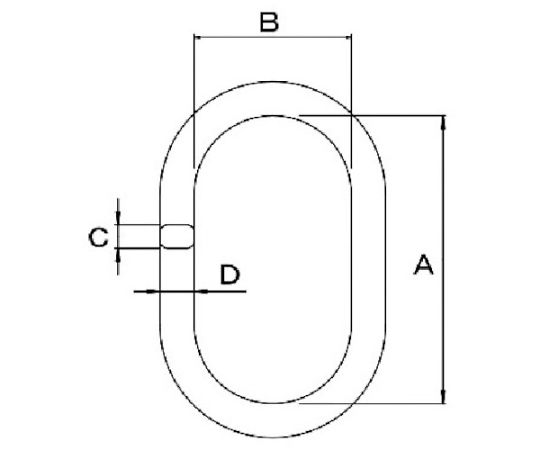

Since it uses a belt sling, it is lightweight and improves workability. The working load of the entire hoisting device is set, so it can be selected according to the weight of the load. The oval links make it easy to hook onto a crane hook. For lifting and transporting at construction sites, civil engineering sites, and various factories. For transporting molds, eyebolt attachments, etc. Basic load capacity (t): 1.72 when the hanging angle is 60° Belt dimensions (mm) width x thickness: 35 x 8 Reach (m): 1 Hook color: Orange Eye width (mm): 23 Eye length (mm): 125 Eye thickness (mm): 13 Sewing length (mm): 220 Weight hook dimension (mm) E: 32 Weight hook dimensions (mm) D: 13 Weight hook dimensions (mm) C: 25 Weight hook dimension (mm) A: 108 Weight hook dimension (mm) A': 147 Maximum load capacity (t): 2 Weight hook dimensions (mm) F: 40 Weight hook dimensions (mm) G: 44 Weight hook dimensions (mm) H: 20 Weight hook dimensions (mm) I: 26 Alloy main link dimensions (mm) A: 125 Alloy main link dimension (mm) B: 65 Alloy main link dimensions (mm) C: 13 Operating temperature (℃): 100 degrees or less Color: Orange Alloy main link dimensions (mm) D: 17 Weight hook dimension (mm) E': 25 The belt sling uses the same belt as the G series. 2-belt sling type Upper: Alloy main link 2ton Lower part: Heavy hook (with spring) 1 ton Material/Finish: Belt sling/nylon (polyester inside), link/special alloy steel, hook/special alloy steel Set contents/accessories: 2 belt slings, 2 hooks (with locking mechanism), 1 alloy main link (pre-assembled) Caution: Always use within the load capacity for each lifting angle. The load listed is for use when suspended evenly at two points. When using with one point suspension, reduce the load to half. Please check the dimensions of the hook and ring to make sure they can be attached to the desired object. Be sure to use padding such as corner pads in any area where sharp corners or friction from the cargo may damage fiber slings such as belt slings. Not chemical resistant. Country of Origin: Japan Code number: 258-0334
