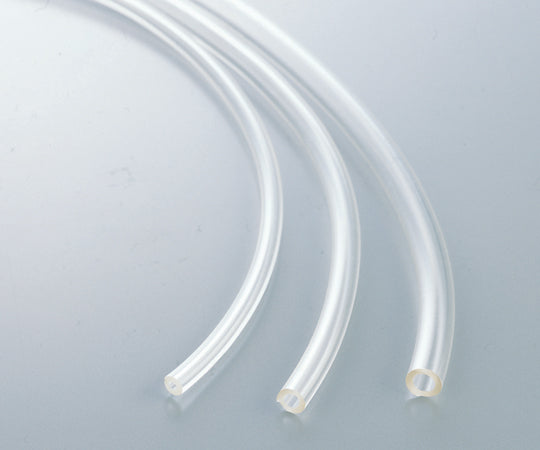

77390-00 Dedicated PTFE tube ID 2 x OD 4 x 380mm 1 bag (2 pieces) 77390-50 1 bag (2 pieces)
77390-00 Dedicated PTFE tube ID 2 x OD 4 x 380mm 1 bag (2 pieces) 77390-50 1 bag (2 pieces)
Regular price
¥30,360
Regular price
Sale price
¥30,360
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The lifespan is approximately 500 hours (at 21°C, pressure 0, 100 rpm), and it can pump liquids under a maximum pressure of 0.7 MPa.
The only part that comes into contact with liquid is the inside of the tube. Dedicated PTFE tube
Material: PTFE (polytetrafluoroethylene)
Maximum pressure resistance: 0.7MPa
Rotation speed and initial liquid delivery volume: 1 rpm/0.06 mL/min, 75 rpm/4.5 mL/min, 100 rpm/6 mL/min, 150 rpm/9 mL/min, 300 rpm/17 mL/min
*Due to the nature of PTFE tubing, the amount of liquid delivered will decrease from the initial flow rate (distilled water, pressure 0).
Size: Inner diameter 2 x outer diameter 4 x 380mm
2 pieces
*Gas cannot be pumped.
Code: 243891
RoHS2 (EU)2015/863 compliant [About RoHS]
