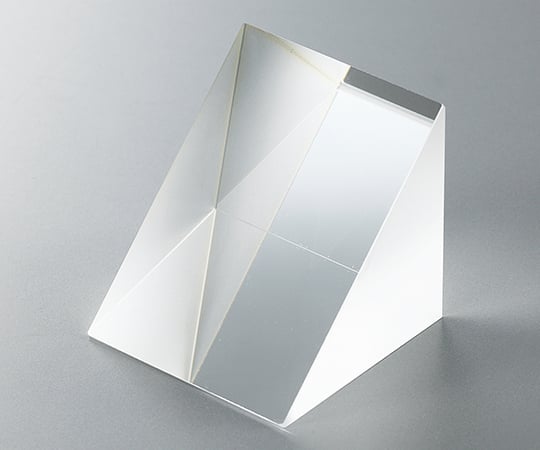

An image that is perpendicular to a right-angled surface is reflected at an angle of 90°.
An image that is perpendicularly incident on a slope is reflected twice by the right-angled surface, resulting in an inverted image.
It can be used to adjust the angle of light and the direction of the image. Size (mm): 10 x 10 x 10
Material: BK7
Design wavelength: 587.6nm
Refractive index: 1.51680/nd
<Tolerance range>
External dimensions: φ±0.2mm
Angle tolerance: ±3 minutes (3')
Surface accuracy: λ/2
Surface quality: MIL60-40
