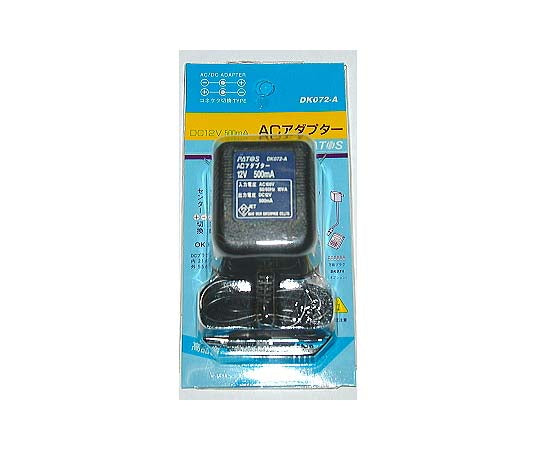

AC adapter 12V/0.5A DK072A 1 piece

This is a linear type (non-switching) unregulated AC adapter. Since no switching is performed, it is low noise. It is suitable for high-precision analog equipment and audio that are extremely sensitive to noise. The output is unregulated, so the output voltage of 12V is a guideline. If you need exactly 12V, use an adapter with a slightly higher voltage such as 15V and stabilize it to 12V with a three-terminal regulator. (There is also the DK020-R with a built-in regulator.) Input voltage: (50/60Hz) AC100V Output voltage DC12V Output current 500mA Output plug shape DC inner diameter φ2.1/outer diameter φ5.5 Input plug shape: Direct-attach type The output plug at the end of the polarity cord is detachable and will be "center positive" or "center negative" depending on the direction it is inserted. Be sure to check the polarity before connecting to a device. DC cord length: 1.8m Remarks: This is a non-regulated type. For details, please see How to Choose an AC Adapter.
