AC adapter 24V 1A ATS024T-W240U 1 piece
AC adapter 24V 1A ATS024T-W240U 1 piece
AC adapter ATS series
Bench Power Supplies and Power Measurements
Electronic Components, Power Supplies, Connectors
Electronic/Electrical Components and Control Devices
Industrial AC Adapter
Input/Output Devices
IT-related/DX support
Martsu Elec
Power supplies and transformers
Power supplies, AC adapters, etc. (for PCs)
Research Equipment
Regular price
¥2,365
Regular price
Sale price
¥2,365
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

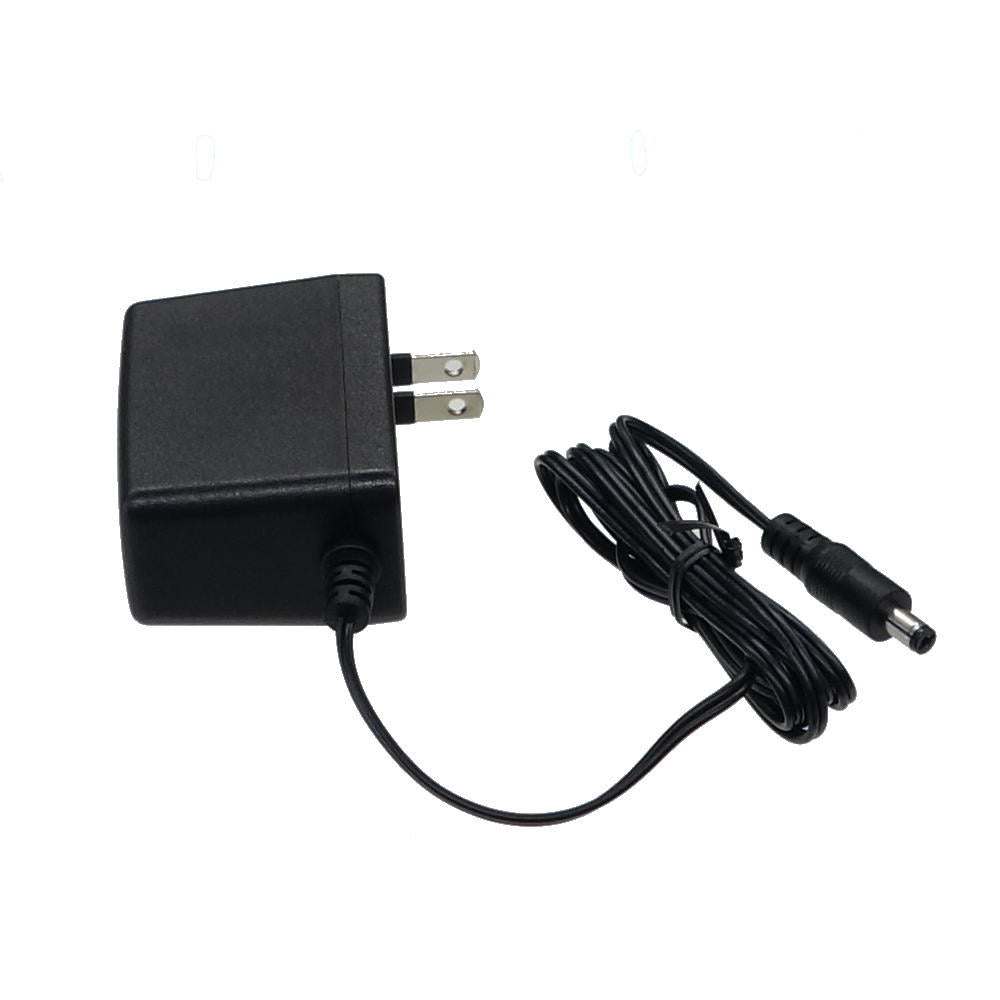

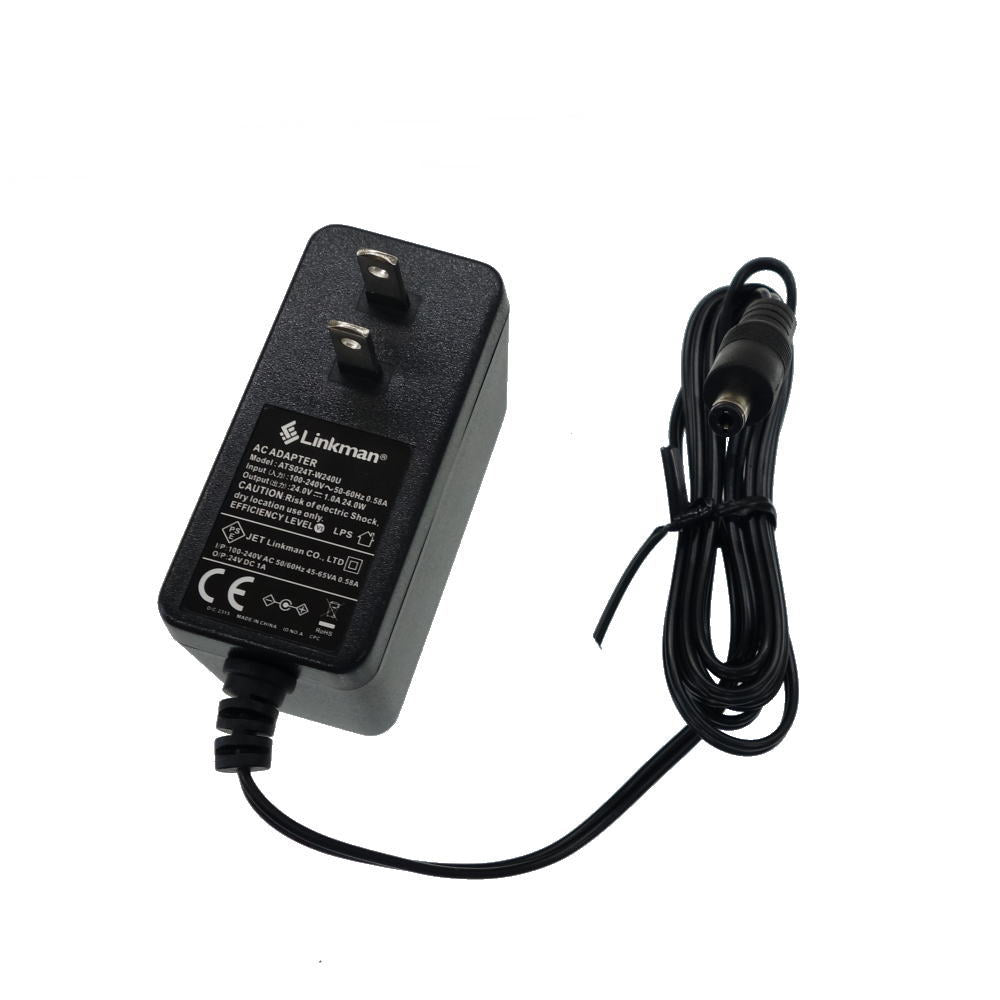

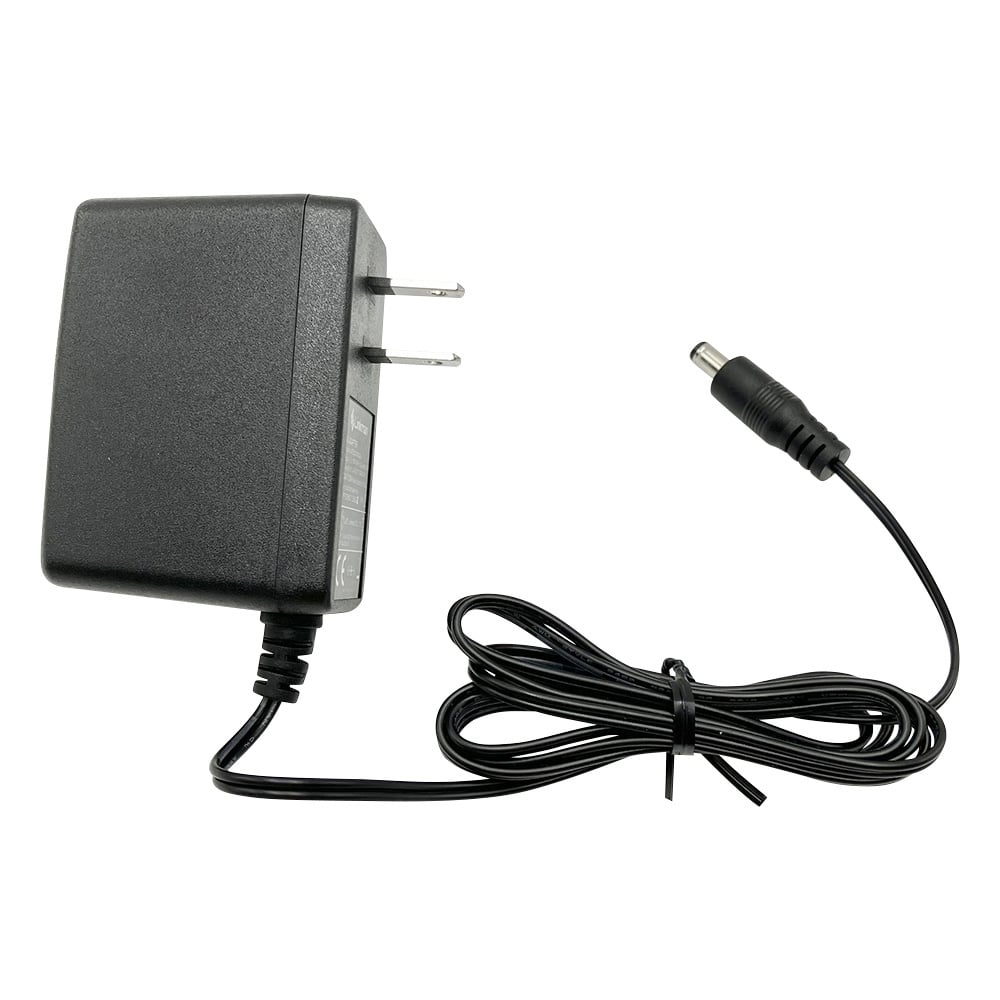

This is a 24W (output 24V/1A) switching AC adapter that is compatible worldwide (AC100-240V input). The output terminal is a commonly used φ2.1mm center positive type, and is a tracking-proof product. When using, please pay attention to the type and polarity of the output terminal. Please refer to the list on the data sheet for the output terminal type. Main Specifications
Input voltage (50/60Hz) 100-240VAC
Input current 0.58A
Output voltage 24V
Output current 1A
Operating temperature range: 0℃ to 40℃
Storage temperature range: -20℃ to 80℃
DC plug shape: Inner diameter: φ2.1 / Outer diameter: φ5.5 / Tip length: 9.5mm / Fork type
Polarity Center Positive
DC cable length: 1.5m
DC cable standard UL2468 AWG22
Body size: 72 (L) x 34 (W) x 69 (H) mm
Weight: 170g
Compliant with external power supply regulations DoE Level Ⅵ
PSE
Anti-Tracking
RoHS (EU) 2015/863
REACH
Conflict Minerals Survey
Flame retardant standard UL 94V-0
Compatible jacks: 32753PAE, DCJ2.1-1.8M, MJ-077N, MJ-10, MJ-14, MJ-21, etc.
