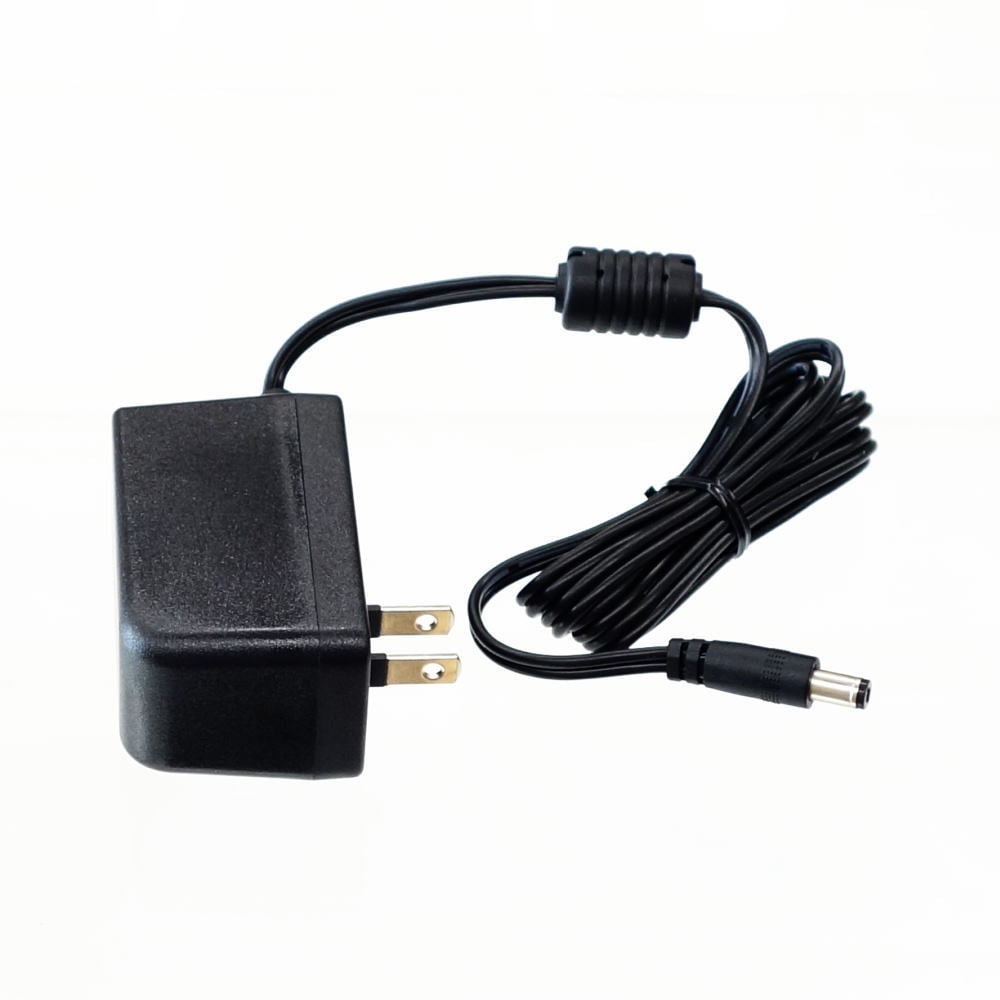

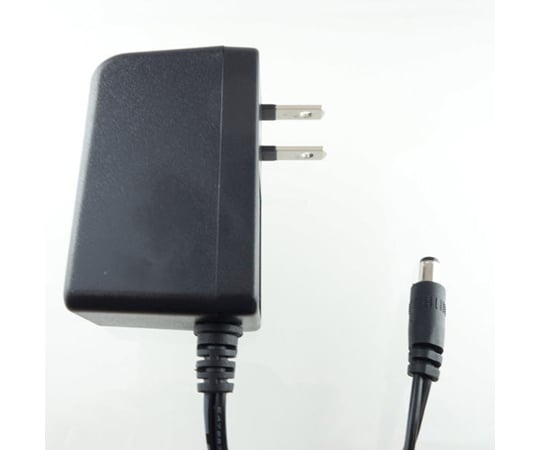

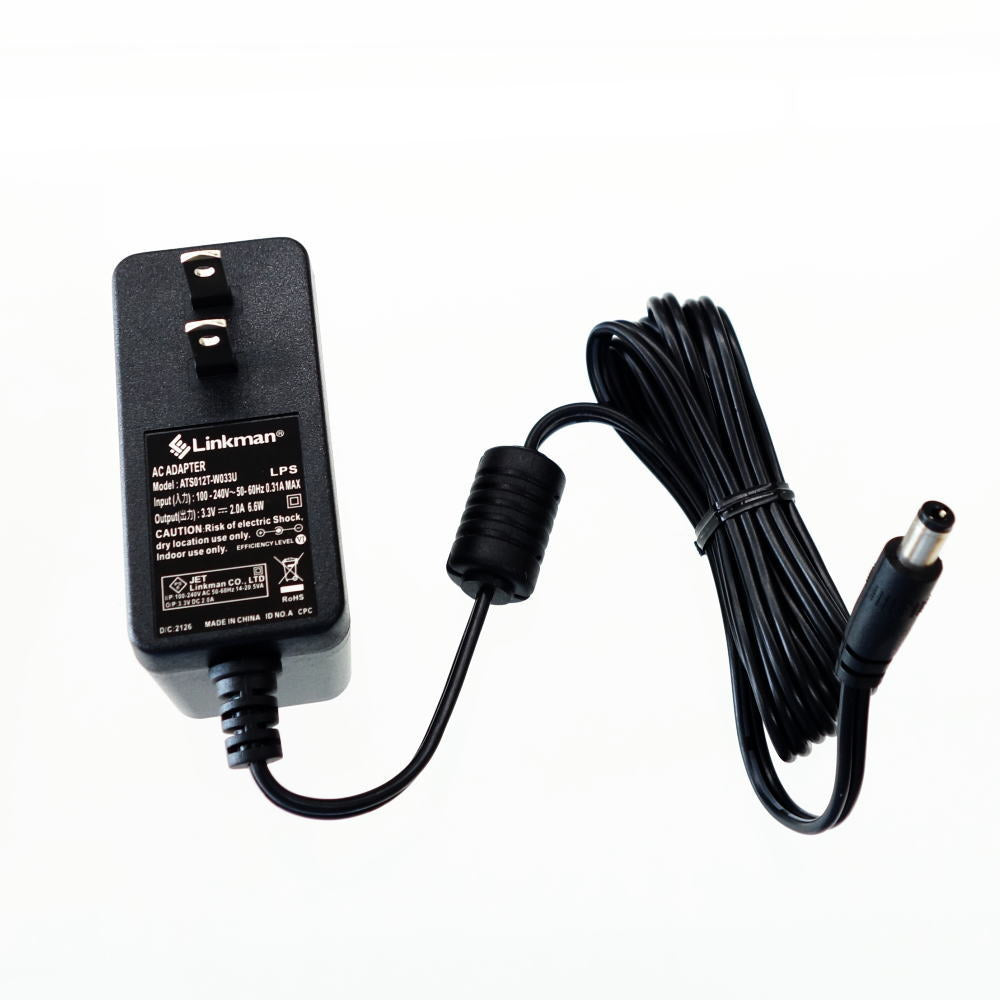

AC adapter 3.3V 2A ATS012T-W033U 1 piece

Switching AC adapter with 3.3V/2A output for worldwide use This is a 6.6W (output 3.3V/2A) switching AC adapter that is compatible with the world at large (AC100-240V input). The output terminal is a commonly used φ2.1mm center-positive type, and is a tracking-proof product. When using, please pay attention to the type and polarity of the output terminal. Please refer to the list on the data sheet for the output terminal type. Main Specifications Input voltage (50/60Hz) 100-240VAC Input current 0.31A Output voltage 3.3V Output current 2A Operating temperature range: 0℃ to 40℃ Storage temperature range: -20℃ to 80℃ DC plug shape: Inner diameter: φ2.1 / Outer diameter: φ5.5 / Tip length: 9.5mm / Fork type Polarity Center Positive DC cable length: 1.5m DC cable standard UL2468 AWG16 Body size: 72 (L) x 34 (W) x 59 (H) mm Weight: 165g Compliant with external power supply regulations DoE Level Ⅵ PSE Anti-Tracking RoHS (EU) 2015/863 REACH Conflict Minerals Survey Flame retardant standard UL 94V-0 Compatible jacks: 32753PAE, DCJ2.1-1.8M, MJ-077N, MJ-10, MJ-14, MJ-21, etc.
