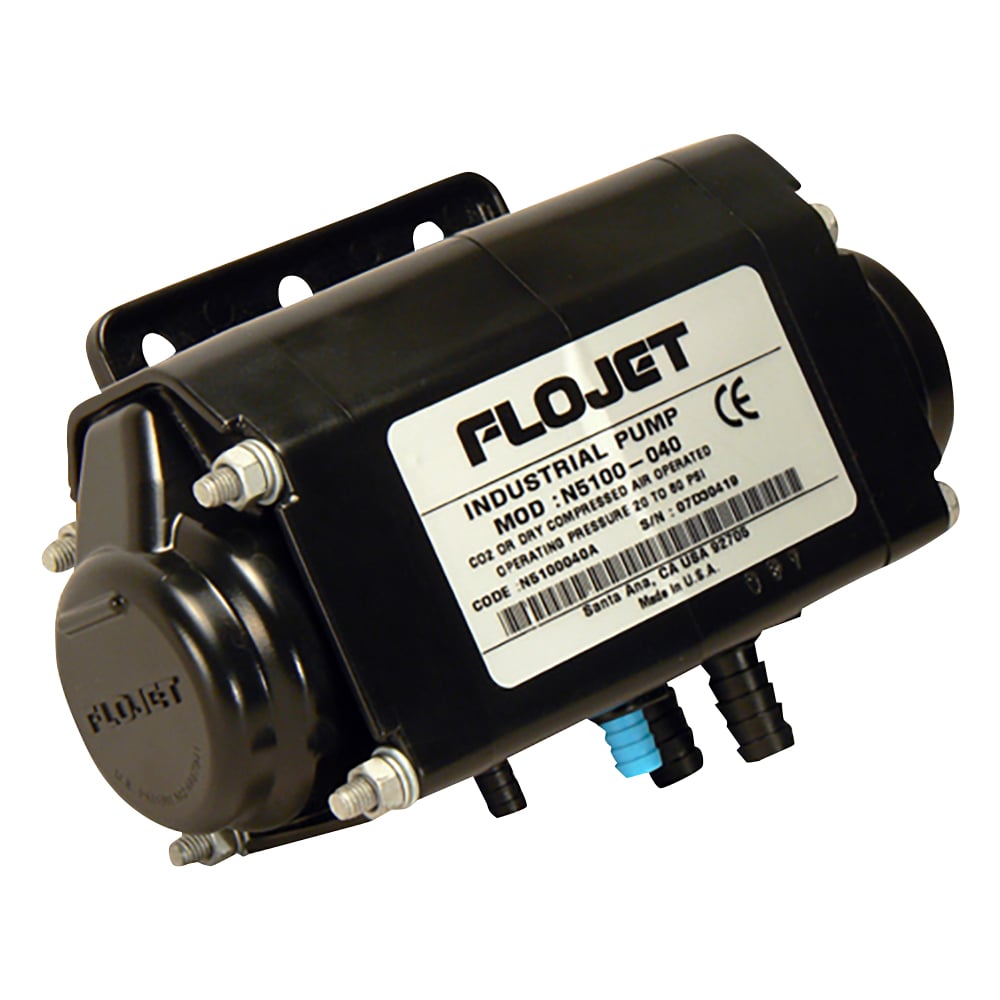

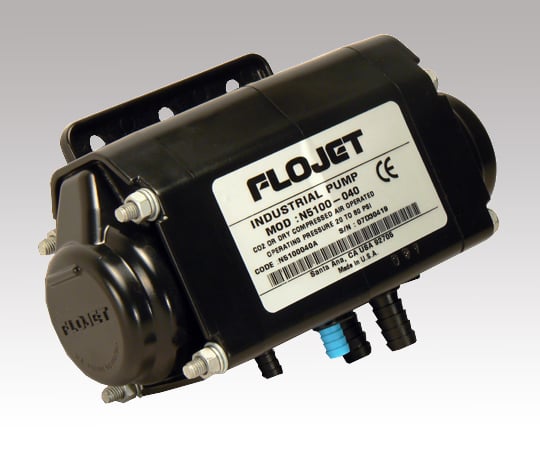

Air-operated diaphragm pump N5100020A 1 unit

This is an ultra-compact air-driven pump. The hose socket is detachable, making hose installation easy. Variable capacity from 0 to maximum flow with no pressure drop. It can be installed on top of the tank because it can be operated dry and is completely self-priming. Maximum flow rate (L/min): 9.5 Maximum discharge pressure (kg/cm2): 5.5 Material: Liquid contact part: POM (polyacetal), diaphragm valve: Viton (R) Size: 157 x 105 x 61 mm Maximum air pressure: 5.5kg/cm2 Port opening: 3/8″ Air outlet: 1/4″ Weight: 500g Maximum self-priming force: 8.5m Operating temperature: Maximum 49°C Viscosity: Maximum 250 cP Applications: Can be used for food and beverage equipment, cleaning machines, chemical equipment, and general industrial equipment.
