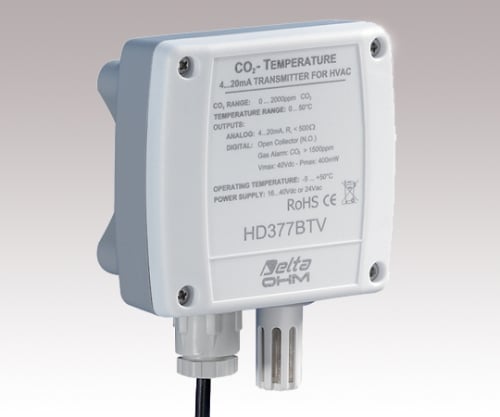

Wall-mounted type with downward air intake. Model number: HD377BTV
Measurement method: 2-wavelength NDIR
Measurement range: CO2/0-2000ppm, Temperature/0-50℃
Accuracy: CO2/±(50ppm+3%rdg), temperature/±0.3℃
Analog output: DC4 to 20mA
Power supply: DC16-40V or AC24V±10%
Power consumption: 2W or less
Body size: 84 x 44 x 80mm
Dust and water resistance: IP21
Measurement items: CO2, temperature
